Automatic Water Pump Controller Inverter 220VAC 0.75Kw 1.5Kw 2.2Kw 1hp Single Phase Output Solar Pump Inverter For Ac Pump

Solar Pumping System overview
Solar pumping systems can be applied to all forms of daily use, water pumping for drinking water supply for remote villages and farms without connection to the water grid, for agricultural use such as livestock watering, agricultural irrigation, forestry irrigation, pond management, desert control, and industrial use such as waste water treatment etc.
The system is composed of a PV generator, a pump and a solar pump inverter. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage, e.g. water tower or an uphill tank installation.
The PV generator, an aggregation of PV modules connected in series and in parallel, absorbs solar irradiation and converts it into electrical energy, providing power for the whole system. The pump drive controls and adjusts the system operation and converts the DC produced by the PV module into AC to drive the pump, and adjusts the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking (MPPT). The pump, driven by 1/3-phase AC motor, can draw water from deep wells, rivers and lakes and pour it into storage tanks or reservoirs, or be connected directly to the irrigation system, fountain system, etc. According to the actual system demand and installation condition, different types of pumps such as centrifugal pump, axial flow pump, mixed flow pump or deep well pump can be used.

Solar Pump Inverter Features

1. Low noisy, lower rate for maintenance.
2. Bulit -in MPPT function and efficiency up to 99.6%.
3. Could drive both pmsm and im pump.
4. Perfect stability in output frequency.
5. Dry run function to protect the pump.
6. Automatic start and stop function.
7. AC and DC as input power source accepted.
8. Low voltage input down to 80vdc input for 220V pumps solution.
9. Remote control and monitoring by GPRS system.
10. Easy operation-Easy to install.



Applications

1 .Agriculture Greenhouse Irrigation
2 . Agriculture Irrigation
3 . Industrial Application
4 . Drip irrigation& sprinkler
5 . Solar City Water Landscape
6 . Wildlife refuge
7 . Rural water supply for ranches, cabins, and cottages
8 . Fountains.


Technical Specification

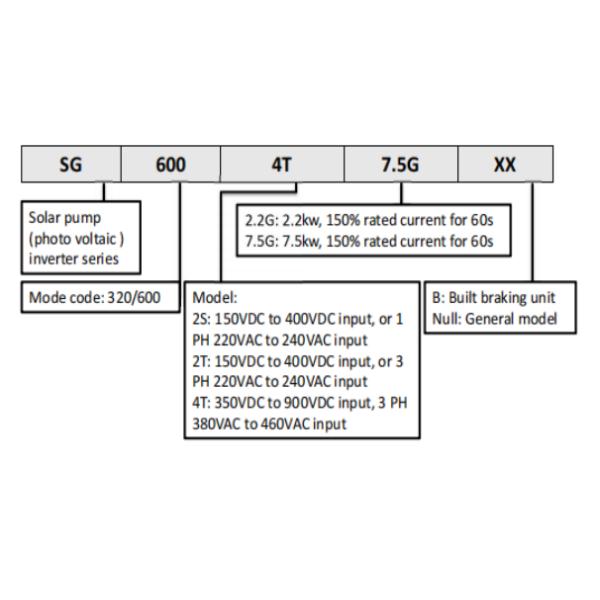

SG600 solar pump inverter nameplate


FAQ

Q1:What is the payment terms?
100% T/T in advance for sample order. 50% T/T in advance, banlance 50% T/T before delivery for bulk order.

Q2 : What's the different between inverter and solar inverter?
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accpet DC input, it more save power.

Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.

Q4 : How about the delivery time?
2-4 days for sample order;15-25 days for bulk order.
