Specifications
Brand Name :
Caltta
Model Number :
DH590
Certification :
-
Place of Origin :
China
MOQ :
2
Price :
US $170.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100 Piece/Pieces 7days
Delivery Time :
7-15 work day
Packaging Details :
25*20*10cm Piece/Pieces
Description

Key attributes

Frequency UHF1: 400-470MHz
VHF:136-174MHz
Channel Capacity 512
Zone Capacity 32
Channel Spacing 12.5KHz/20KHz/25KHz
Frequency Stability ±0.5ppm
Operating Voltage 7.4V
Battery Capacity 2500mAh(standard)
Battery Life Analog: 16 Hours
Digital: 20 Hours
(5: 5: 90 working cycle, high power transmission)
Size (H x W x D) 116.4x54.5x35.5mm (with 2500mAh battery, without antenna)
Weight 285g (with 2500mAh battery and antenna)
Screen 1.75-inch LCD, 160*128
Vocoder AMBE++
Layout Top: volume/switch knob x1, channel knob x1
Side: PTT key x1, programmable key x2, SOS key x1
A full keypad
External Interface 18-pin waterproof interface, support audio/programming
Recording Optional
VOX Support
Roaming Support
Real-time Clock Support
Encryption Support 40/128/256bit basic private encryption

Transmitter

RF Power Output (Low) 1W
RF Power Output (High) 4W (UHF1) / 5W (VHF)
FM Modulation 12.5KHz: 11K0F3E / 20KHz: 14K0F3E / 25KHz: 16K0F3E
4FSK Digital Modulation 12.5KHz Data Only: 7K60FlD&7K60FXD
12.5KHz Voice Only: 7K60FlE&7K60FXE
12.5KHz Voice and Data: 7K60F1W
Conducted/Radiated Emission -36dBm ≤1GHz, -30dBm > 1GHz
Modulation Limiting ±2.5KHz @12.5KHz/±4KHz @20KHz/±5.0KHz @25KHz
FM Hum and Noise -40 dB@l2.5KHz /-43dB@20KHz /-45 dB@25KHz
Adjacent Channel Power 60 dB@l2.5KHz /70 dB @20/25KHz
Audio Distortion ≤3%
Audio Response + 1 ~-3dB(TIA603D)

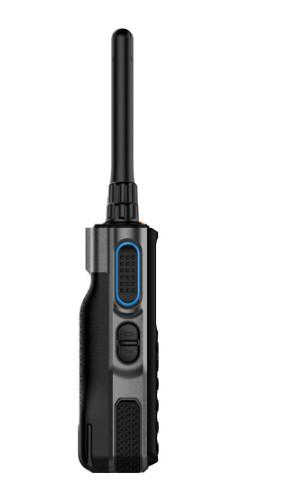

Digital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkie

Digital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkie


Tks your kindly inquiry.

May i know the quantity and frequency you need?

And do you have forwarder in china?

Mine whaqtsapp is +8613539768762,how about yours?

Waiting.


Digital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkieDigital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkieDigital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkieDigital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkieDigital Two Way Radio DH590 Waterproof Dustproof Long Lasting Endurance Recording Optional walkie talkie


Incredible audio quality
There is no doubt that digital walkie-talkies can get a clearer picture of voice calls.
The GP338D handheld walkie-talkie can provide you with excellent digital audio performance in the coverage area, and its unique features can help employees speak clearly and clearly wherever they are.
Intelligent audio can automatically adjust the volume of the radio, compensation background noise, so the workers don't have to adjust the volume of the radio can be avoid in noisy environment, missed call or disturb others when quiet area.
Enhanced background noise suppression helps to filter out unwanted external noise - from the noise emitted by heavy equipment to the roar of the engine.

Oversize and coverage
Employees work hard every day - hauling heavy loads, repairing roads, providing security, responding to customer demands, or restoring power after a storm.
Interconnect IP base station by using the Internet to expand coverage to create a wide area network, will expand the coverage of a single base station or geographically dispersed base station connected together, which helps greatly improve customer service and increase productivity.
Capacity Plus (cluster extension) single base station cluster solution, which can extend the communication Capacity to more than 1000 users without adding new frequencies.
Linked Capacity Plus combines the expansion Capacity of Capacity Plus with the wide coverage of IP base station interconnection to provide multi-base cluster solutions with high Capacity, wide coverage and efficient economic performance.
Therefore, whether you want to use a single base station or a multi-base station, MSTAR can meet your business and budget needs.

over!
