Specifications
Brand Name :
Caltta
Model Number :
PH600
Certification :
-
Place of Origin :
China
MOQ :
2
Price :
US $356.63
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100 Piece/Pieces 7days
Delivery Time :
7-15 work day
Packaging Details :
25*20*10cm Piece/Pieces
Description
General
Digital Protocol ETSI TS 102 361-1,-2,-3
Frequency

UHF1: 400-470MHz

UHF3: 350-400MHz

VHF: 136-174MHz

Channel Capacity 32
Zone Capacity 2
Channel Spacing 12.5KHz/20KHz/25KHz
Frequency Stability ±0.5ppm
Operating Voltage 7.4V
Battery Capacity 2600mAh (Standard)
Battery Life(5:5:90)

Analog: 16 hours

Digital: 20hours

Size (H x W x D) 100*54.5*37.5mm (without antenna)
Weight About 270g (With Antenna and Battery)
Voice Announcement Support
Vocoder AMBE++
VOX Support
Man Down Support
Vibration Support
Optional Board Support
Recording Support (Optional)
Bluetooth Built-in BT4.0 Chip Supports BT Audio/PTT/Positioning Device (Optional)
Location GPS (Optional)
Encryption Support SW and HW Encryption ( Optional )

Receiver

Sensitivity(Analog Typical) 0.18uV(12dB SINAD)
Sensitivity(Digital Typical) 0.18uV (5% BER)
Adjacent Channel Selectivity 60 dB@12.5KHz/70 dB@20/25KHz (TIA603A)
60dB@12.5KHz /70 dB@20/25KHz ( ETSI )
Intermodulation 70 dB (TIA603D)
65 dB (ETSI)
Spurious Rejection 70 dB (TIA603D)
70 dB (ETSI)
Blocking or Desensitization 80dB(TIA603D)
84dB(ETSI)
Co-channel Rejection -12~0 dB @12.5KHz/-8~0 dB @20/25KHz
Hum and Noise -40 dB@12.5KHz /-43 dB@20KHz /-45 dB@25KHz
Rated Audio Power 0.5W
Max Audio Power 2.0W
Audio Distortion @ Rated Audio ≤3%
Audio Response +1~-3dB (TIA603D)
Conducted Spurious Emission -57 dBm (TIA603D)
Transmitter
Low Power Output 1W
High Power Output 4W (UHF1&UHF3) / 5W (VHF)
FM Modulation 12.5KHz: 11K0F3E / 20KHz: 14K0F3E / 25KHz: 16K0F3E
4FSK Digital Modulation 12.5KHz Data Only: 7K60F1D&7K60FXD
12.5KHz Voice Only: 7K60F1E&7K60FXE
12.5KHz Voice And Data: 7K60F1W
Conducted/Radiated Emission -36dBm ≤1GHz ; -30dBm >1GHz
Modulation Limiting ±2.5KHz @12.5KHz /±4KHz @20KHz /±5.0KHz @25KHz
FM Hum and Noise -40 dB@12.5KHz /-43dB@20KHz /-45 dB@25KHz
Adjacent Channel Power 60 dB@12.5KHz /70 dB @20/25KHz
Audio Distortion @ Rated Audio ≤3%
Audio Response +1~-3dB(TIA603D)
Environmental
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
ESD IEC 61000-4-2 (level 4) ±8kV (Contact) ±15kV(Air)
Dust and Water Resistance IP68
Reliability MIL-STD-810 G
GPS
Accuracy specs are for long-term tracking (95th percentile values>5satellites visible at nominal -130 dBm signal strength)
TTFF (Time To First Fix) - Cold Start <60s
TTFF (Time To First Fix) - Hot Start <10s
Horizontal Accuracy <10m

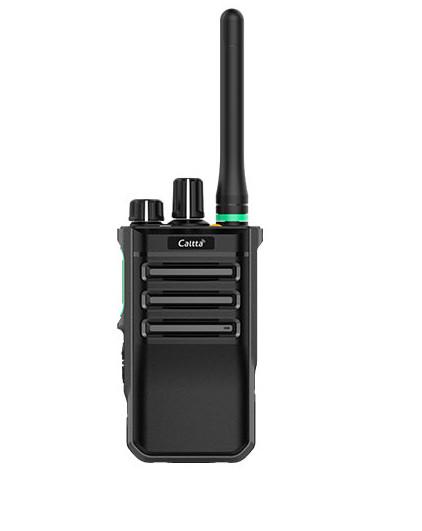

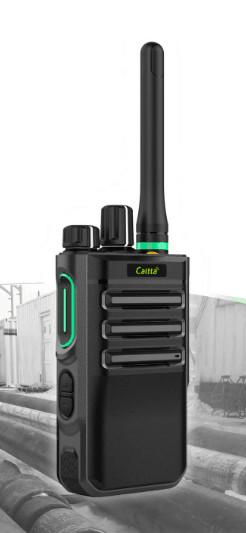

Rainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie Talkie

Rainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie Talkie


Tks your kindly inquiry.

May i know the quantity and frequency you need?

And do you have forwarder in china?

Mine whaqtsapp is +8613539768762,how about yours?

Waiting.


Rainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie TalkieRainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie TalkieRainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie TalkieRainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie TalkieRainproof Drop Resistant Long Distance Two Way Radio Compatible Walkie Talkie


Incredible audio quality
There is no doubt that digital walkie-talkies can get a clearer picture of voice calls.
The GP338D handheld walkie-talkie can provide you with excellent digital audio performance in the coverage area, and its unique features can help employees speak clearly and clearly wherever they are.
Intelligent audio can automatically adjust the volume of the radio, compensation background noise, so the workers don't have to adjust the volume of the radio can be avoid in noisy environment, missed call or disturb others when quiet area.
Enhanced background noise suppression helps to filter out unwanted external noise - from the noise emitted by heavy equipment to the roar of the engine.

Oversize and coverage
Employees work hard every day - hauling heavy loads, repairing roads, providing security, responding to customer demands, or restoring power after a storm.
Interconnect IP base station by using the Internet to expand coverage to create a wide area network, will expand the coverage of a single base station or geographically dispersed base station connected together, which helps greatly improve customer service and increase productivity.
Capacity Plus (cluster extension) single base station cluster solution, which can extend the communication Capacity to more than 1000 users without adding new frequencies.
Linked Capacity Plus combines the expansion Capacity of Capacity Plus with the wide coverage of IP base station interconnection to provide multi-base cluster solutions with high Capacity, wide coverage and efficient economic performance.
Therefore, whether you want to use a single base station or a multi-base station, MSTAR can meet your business and budget needs.
