Forged 1 Inch 60 Type Alloy Steel Swivel Joint Work Pressure 5000 PSI API 16C COC Provide Process Forged For Oil Drilling
Forged 1 Inch 60 Type Alloy Steel Swivel Joint Work Pressure 5000 PSI API 16C COC Provide Process Forged For Oil Drilling
Forged 1 Inch 60 Type Alloy Steel Swivel Joint Work Pressure 5000 PSI API 16C COC Provide Process Forged For Oil Drilling
Forged 1 Inch 60 Type Alloy Steel Swivel Joint Work Pressure 5000 PSI API 16C COC Provide Process Forged For Oil Drilling
Specifications
Brand Name :
FORUS
Model Number :
1 Inch 60 Type
Certification :
API 16C
Place of Origin :
China
MOQ :
5 EA
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 pieces per month
Delivery Time :
25 days
Packaging Details :
Wooden Box
Product Name :
1 Inch 30 Type Swivel Joint
Material :
Alloy Steel
Process :
Forged
Pressure :
5000 PSI
COC :
Provide
Port :
Guangzhou
Description

1 Inch 60 Type Alloy Steel Forged Swivel Joint Work Pressure 5000 PSI API 16C For Oil Drilling

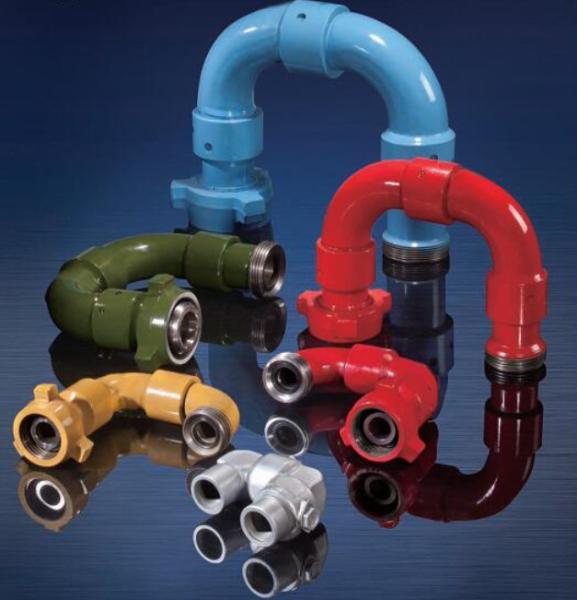

The swivel joint is a metal pipeline joint equipped with ball bearings. It is a series of products digested, absorbed and innovatively produced based on the technology transferred by the American FMC Company. Its specifications range from 1″to 4″, and the rated working pressure is 25 to 140Mpa (3626psi to 20000psi). Various types of swivel joints and repair kits can be provided for use under normal temperature, low temperature and sulfur-containing gas conditions.

Product Introduction

The swivel joint is a high-pressure fluid control component in cementing and fracturing equipment. It is a pipe fitting that changes the connection direction of construction pipelines and facilitates pipeline connection. It is widely used in high-pressure discharge pipelines, input pipelines, temporary liquid flow pipelines, well test pipelines and other high-pressure transportation pipelines in acidic operating environments (excluding operating environments containing acidic gases such as CO2 and H2S). The specifications of the swivel joint range from 1 inch to 4 inches, the rated working pressure is 42mpa-105mpa, and the working temperature is -46℃~121℃.
