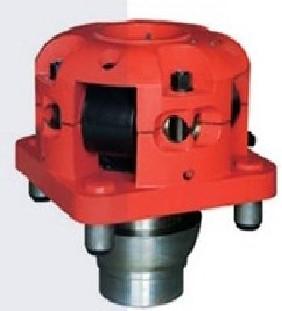

MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling
Specifications
Brand Name :
FORUS
Model Number :
27.5 37.5 MSP MPCH Master Bushing
Certification :
API
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Sets Per Month
Delivery Time :
20 days
Packaging Details :
Wooden Box
Product Name :
27.5 37.5 MSP MPCH Master Bushing
Material :
Alloy Steel
Port :
Tianjin
Application :
Oilfield Drilling
Rotary Table Model :
27 1/2" 37-1/2"
Insert Bowl :
EXT.No.3 Taper/Bowl 6608(No3)
Tubulars OD (in) :
2 3/8-8 5/8
Standard :
API 7K
Description

MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oilfield Drilling

Rotary Table Master Bushing

We produce various rotary table (171/2 in to 491/2 in)bushings and inner liners.Our materials are alloy steels,and dimensions are in accordance with API Spec 7K.There aret wo types of bushings,ie,the solid body type and split body type,and there are also two structures,which includes Kelly driving and pin driving.Our bushings could be put into the API standard drill pipe slips,drill collar slips,casing slips and roller bushings.There are MSS,MDSP,MSPC,MPCH models,suitable for 171/2 to 491/2 full range rotary tables,interchangeable with products of NATIONAL VARCO,EMSCO,IDECO,GARDNER and other companies.Our product design,manufacturing procedures are according to the API Spec 7K specification.

MSP MPCH Master Bushing Solid Body For Rotary Table 27.5 Inch 37.5 Inch For Oil Drilling

Feature

In accordance with API7K

Pulling out or feeding off string can be done while rotating; Integral construction

Easy to install and maintain

Low friction

Bushing Type Rotary Table Size (in) Insert Bowls Handing Tubular OD (in)
MSS Solid body
and Split body		 171/2
API Bowl 1011		 23/8-85/8
EXT.Bowl1024
201/2
API Bowl 1011		 23/8-85/8

EXT.Bowl 1024
271/2
API Bowl 1022		 23/8-85/8
EXT.Bowl 1025

Insert Bowl 1026		 95/8-103/4
MDSP Split

body		 171/2 EXT.No.3 Taper 23/8-85/8
201/2 EXT.No.3 Taper 23/8-85/8
MSPC Solid
body		 201/2
FXT.Bowl 1809		 23/8-85/8
Bowl 1902 95/8-103/4
Body only 1805 113/4-133/8
271/2 Bowl 1810(No3) 23/8-85/8
Bowl 1904 (No2) 95/8-103/4
Bowl1903(No1) 113/4-133/8
MSP Solid body 271/2 EXT.No.3 Taper 23/8-85/8
MPCH 371/2 Bowl 6608(No3) 23/8-85/8
Bowl6609(No2) 95/8-103/4
Bowl 6610 (No1) 113/4-133/8
491/2 MPCH 371/2 23/8-133/8
