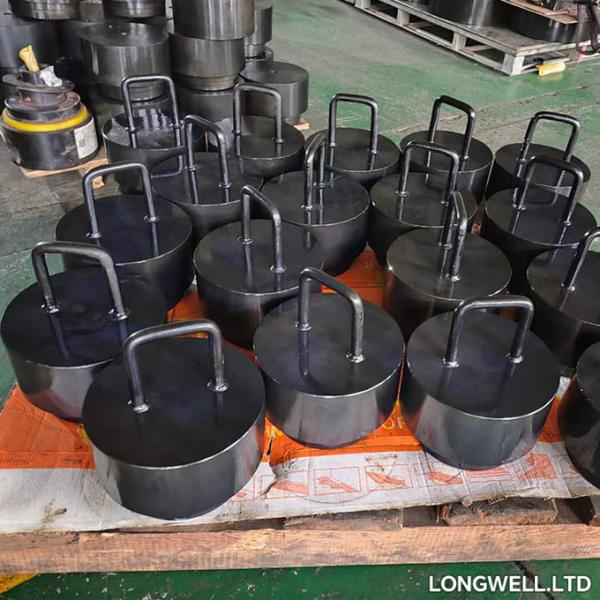

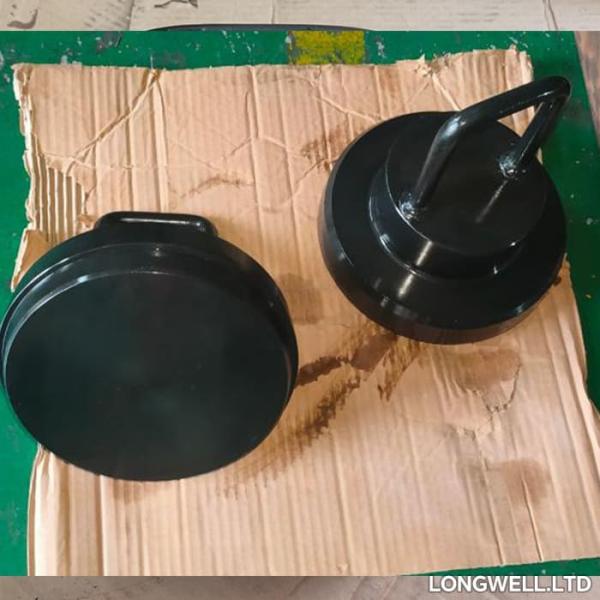

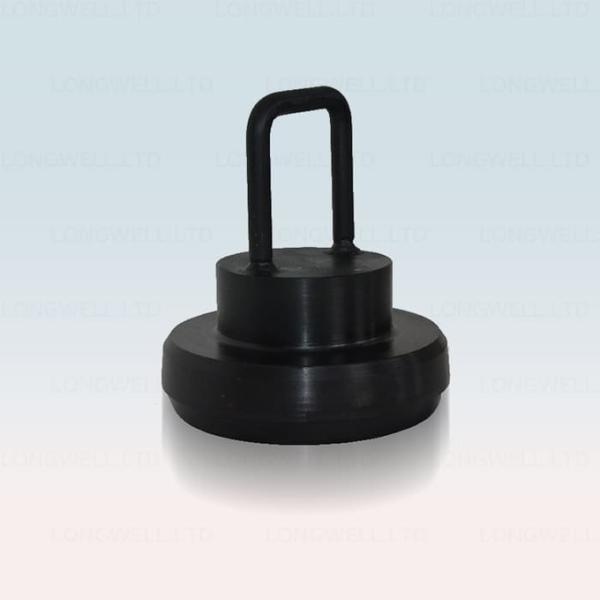

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
Specifications
Brand Name :
LONGWELL
Model Number :
Oil Drilling Mud Pump
Certification :
API-7K
Place of Origin :
China
MOQ :
1 PCS
Packaging Details :
Plywood case/Iron pallet
Payment Terms :
T/T 30%DP, balabce before ship
Supply Ability :
1000 PCS per Month
Usage :
drill rig
Maximum Pressure :
7500 psi
Standard Or Nonstandard :
Standard
Condition :
new
Type :
Triplex Piston Pump
Oem :
Applicable
Model :
Haihua F1600
Certifications :
API, ISO
Power Rating :
1000 HP
BOMCO :
F800/1000/1300/1600/1600HL
HONGHUA :
3NB-800/1000/1300/1600F
HRSB :
RS-F800/1000/1300/1600
INGZHOU :
QF-1300/1600
LS-NOW :
3NB1300C/1600
NOV :
12-P-160 14-P-220
WeatherFord :
MP-10/16
GD :
PZ-7/8/9/10/11
EMSCO :
FB-1300/1600
RUSSIAN :
UNBT-950/1180L UNB-600 8T650
Description

What is Haihua F1600 mud pump Cylinder Head Plug?


The plug is an important part for the fluid end of mud pump in oil drilling. Its front part is equipped with cylinder head (valve cover) sealing ring for the sealing and pressure maintaining of a hydraulic cylinder. A top-grade suitable plug is adopted to improve the cylinder head plug loading condition and also increase the bearing capacity and service life.

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs


What is the material of Haihua F1600 mud pump Cylinder Head Plug?


Cylinder head plug is installed in the hydraulic cylinder.Cylinder head plug consists of a handle and a plug body , which are welded together. The blank of plug body is 45 steel, which is quenched as per the standard of HB217-255.

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs


Plugs made by LONGWELL Company cover a full range of pumps from BAOSHI, LANSHI and QINGSHI factories. All of them adopt high quality alloy carbon steel made by domestic steel plants. They are finished by means of high temperature forging, heat treatment and CNC machining so as to achieve guaranteed geometric size, sealing performance, increased durability and wear resistance.

Haihua F1600 Mud Pump Cylinder Head Plug HH11309.05.06.00.144 For Drilling Rigs
