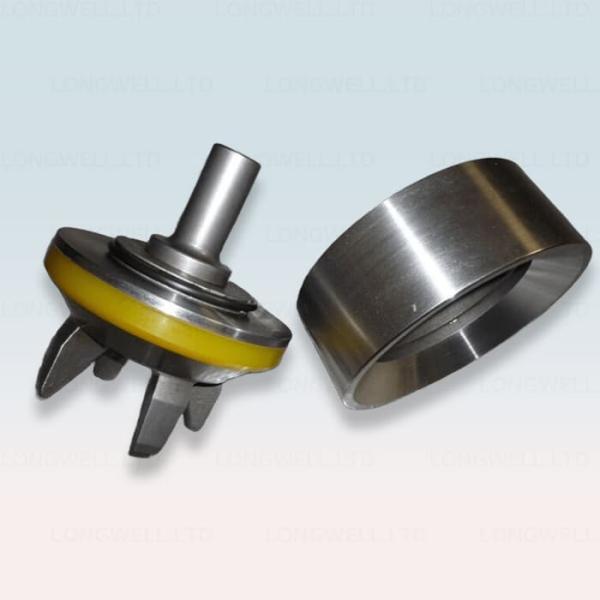

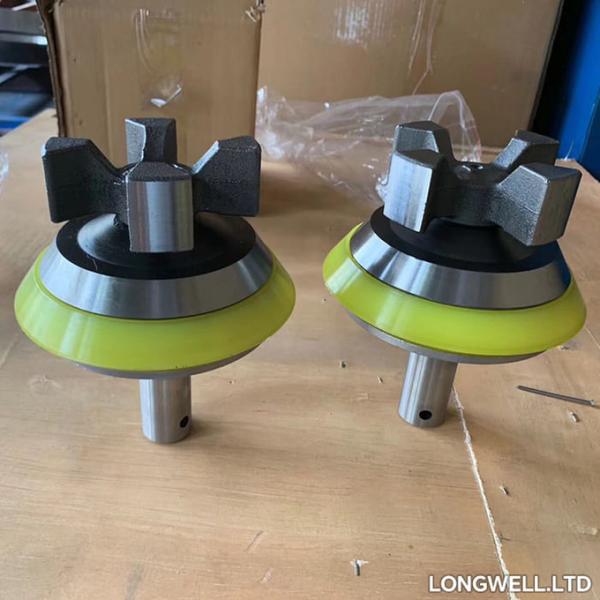

Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal
Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal
Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal
Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal
Specifications
Brand Name :
LONGWELL
Model Number :
Oil Drilling Mud Pump
Certification :
API-7K
Place of Origin :
China
MOQ :
1 PCS
Packaging Details :
Plywood case/Iron pallet
Payment Terms :
T/T 30%DP, balabce before ship
Supply Ability :
1000 PCS per Month
Temperature Rating :
Up to 250°F
Mateial :
20CrMnTi
Application :
Mud Pump
Pressure Rating :
5200 psi
Condition :
new
Oem :
Applicable
Features :
Abrasion-resistant
Valve Handle :
Aluminum Alloy
Standard Or Nonstandard :
Standard
Actuation :
Manual
BOMCO :
F800/1000/1300/1600/1600HL
HONGHUA :
3NB-800/1000/1300/1600F
HRSB :
RS-F800/1000/1300/1600
INGZHOU :
QF-1300/1600
LS-NOW :
3NB1300C/1600
NOV :
12-P-160 14-P-220
WeatherFord :
MP-10/16
GD :
PZ-7/8/9/10/11
EMSCO :
FB-1300/1600
RUSSIAN :
UNBT-950/1180L UNB-600 8T650
Description

What is the surface hardness of Haihua F1600 Full Open Mud Pump Valve?

The valve assembly the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions. is the key component of the hydraulic end of the mud pump.

Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal

What is the type of Mud Pump Valve Assembly?

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-web valve and a four-web valve.

Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal

What is the Haihua F1600 Full Open Mud Pump Valve consists?

The Haihua F1600 Full Open Mud Pump Valve consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

The Haihua F1600 Full Open Mud Pump Valve valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI.

The part numbers of Mud Pump 7# Full Open Valve Assembly are AH0000020100 AH33001-05.17A.00 AH0000020300 GH3161-0511-00 AH36001-05.12A.00

Haihua F1600 Full Open Mud Pump Valve HH0628.207.004 Mud Pump Parts With Pu Rubber Seal

More part numbers for other valves:


AH36001-05.12A.00
AH36001-05.12.00
AH0000020400
AH35001-05.14.00
AH0000020600
AH0000020500
RGF1000-05.17.00
RS11309.05.10.00
