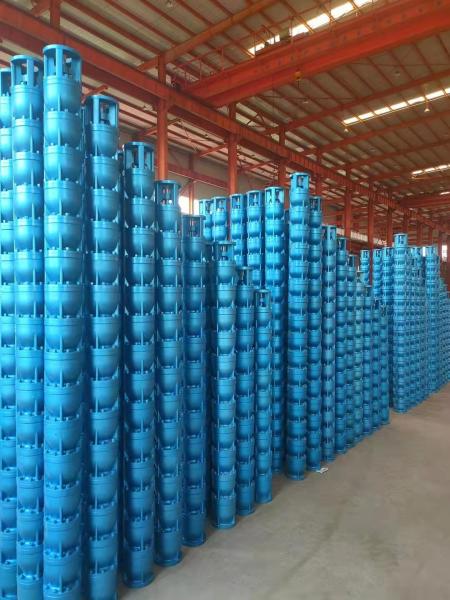

QJ Series Borehole Submersible Pumps

QJ Series BORE HOLE TYPE SUBMERSIBLE PUMP, Large CAPACITY, HEAD, PUMP WATER IN WELLS

1. Product details

Borehole type submersible pump is a direct-connected and integrated submersible water-lifting machine. It is suitable for extracting groundwater from deep wells, and can also be used for water-lifting from rivers/reservoirs/canals, domestic water supply for urban buildings, water companies, power plants, mines, It can also be used in construction sites, industry and civil use, and can also be used for farmland irrigation and domestic water in plateau and mountainous areas.

The biggest feature of the deep well pump is that the motor and the pump are made into one. Since the electric motor dives into the water at the same time, the structural requirements for the electric motor are more special than those of the general electric motor.

2. Features

a) The motor and the pump are integrated, submerged in the water to run, safe and reliable.
b) There are no special requirements for well pipes and lift pipes
c) It is convenient and simple to use, and there is no need to build a pump room.
d) Simple structure and convenient maintenance.

3. Conditions of Use:
a) The pump unit must be fully submerged, but the diving depth should not exceed 70 meters below the still water level, and the bottom of the motor should be at least 1 meter above the bottom of the well.
b) The water temperature should not be higher than 25℃ in general. (Hot water optional hot water submersible pump)
c) Water quality requirements:
(1) The sand content in water is not more than 0.01% (weight ratio);
(2) The pH value is in the range of 6.5~8.5;
(3) The chloride ion content is not more than 400 mg/L.

4. Specifications

Performance parameter

4. Who are we?

Hanlin Industrial Machinery Co., Ltd(HANLIN). is a professional pump supplier.

Our pumps, manufactured since 1954,cover slurry pump, chemical pump, desulfurization pump, multistage pump used for metallurgical, mining, petroleum, chemical, coal, electric power, building materials, municipal and environmental protection industries, mainly used for conveying strong abrasion and high concentration slag slurry containing solid particles, selling well and exporting to more than 20 countries and regions such as Canada, Australia, Vietnam, India, Iran, South Africa and South America.
