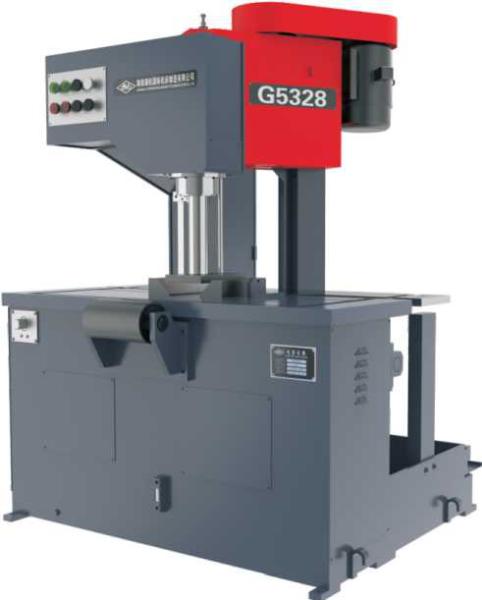

G5328 2.2kw Benchtop Metal Cutting Vertical Band Saw ISO9001 Approved
G5328 2.2kw Benchtop Metal Cutting Vertical Band Saw ISO9001 Approved
G5328 2.2kw Benchtop Metal Cutting Vertical Band Saw ISO9001 Approved
G5328 2.2kw Benchtop Metal Cutting Vertical Band Saw ISO9001 Approved
Specifications
Brand Name :
HJ
Model Number :
G5328
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
120 sets per month
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
saw machine :
Block vertical band saw
Weight :
1200kg
Warranty :
1 Year
Style :
Vertical
Power(w) :
2.2kw
Condition :
New
Description

G5328 Block vertical band saw

Product application

This product is a kind of small vertical band sawing machine with block, it has the sawing function of vertical band sawing machine and horizontal band sawing machine, especially suitable for sawing all kinds of black and colored gold, such as die blank, slab, bar material, etc., and can also sawing all kinds of special-shaped materials under special condition. It has the advantages of narrow mouth, material saving, energy saving, high cutting precision, easy operation and high production efficiency.

Parameters unit specifications
G5328
Maximum sawing thickness mm Φ180 (when the sawing length is greater than 300)
Maximum sawing diameter mm Φ280 (when sawing length is less than 300)

Maximum sawing length

at one time mm

 500
Maximum sawing width mm 300
Band saw blade milling speed m/min 25. 40; 64

Specification of band saw blade

(width x thickness X length) mm

 27 x0.9 x3350
Band saw blade feed rate mm/min 1-400 (stepless adjustable)
Hydraulic system pressure Mpa 1.5
Main motor power KW 2.2
Hydraulic motor power KW 0.75
Cooling motor power KW 0.125
Machine tool external dimension mm 1320X1270X1715
Machine net weight kg 1200
