Heavy Duty 280kw 600.0m3/h Hydraulic Sludge Pump 150ZBG(P)-740
Heavy Duty 280kw 600.0m3/h Hydraulic Sludge Pump 150ZBG(P)-740
Heavy Duty 280kw 600.0m3/h Hydraulic Sludge Pump 150ZBG(P)-740
Heavy Duty 280kw 600.0m3/h Hydraulic Sludge Pump 150ZBG(P)-740
Specifications
Brand Name :
TM
Model Number :
150ZBG(P)-740
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
1-2 months
Packaging Details :
Standard export packing
Product name :
Hydraulic Sludge Pump
Application :
Sewage,Submersible
Standard or nonstandard :
Standard
Warranty :
1 Year
Feature :
rust resistant
Speed :
980r/Min
Description

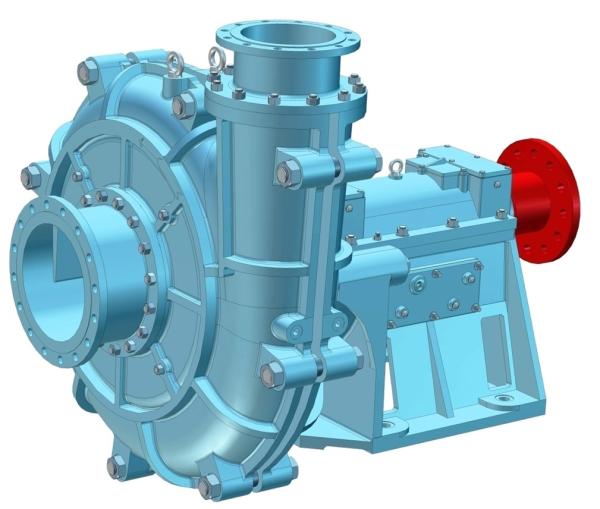

150ZBG(P)-740 Slag Slurry Pump

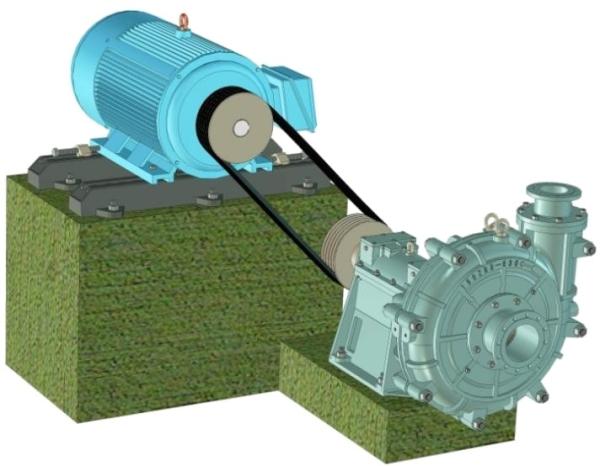

It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized

The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature

The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.

The slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.

The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

Type

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw
150ZBG(P)-740 980 600.0 90.0 70.0 280~355 740 453.1 51.3 67.9 132 -160
720.0 86.3 72.8 543.7 49.2 70.5
345.7 87.2 56.9 261.1 49.7 55.2
150ZBG(P)-740A 980 576.2 83.0 69.7 250~315 740 435.1 47.3 67.6 110~160
691.4 79.6 72.5 522.1 45.4 70.3
330.8 79.8 56.6 249.8 45.5 54.9
150ZBG(P)-740B 980 551.4 76.0 69.4 220~280 740 416.3 43.3 67.3 90-110
661.6 72.9 72.1 499.6 41.6 70.0
315.2 72.5 56.3 238.0 41.3 54.6
150ZBG(P)-740C 980 525.4 69.0 69.0 185~ 220 740 396.7 39.3 66.9 75 -110
630.4 66.2 71.8 476.0 37.7 69.6
