30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
Specifications
Brand Name :
HJ
Model Number :
GKT623B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Payment Terms :
L/C, T/T
Description

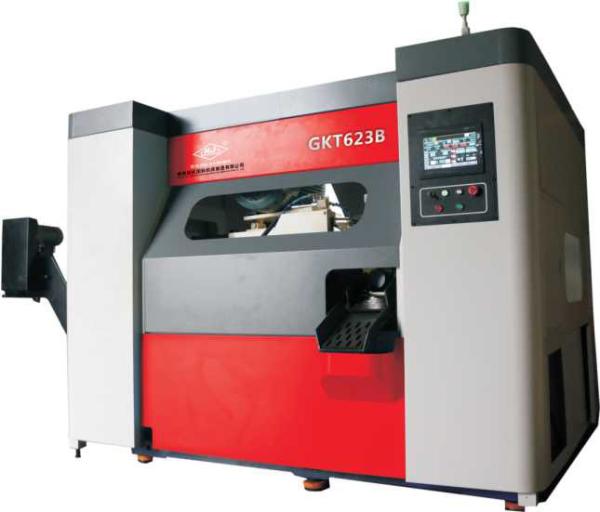

HJ GKT623B CNC Circular Saw Machine

• GKT623B CNC carbide circular sawing machine is mainly used for cutting ferrous or non-ferrous metal materials. Using carbide or ceramic circular saw blades as cutting tools and controlled by numerical control system, this machine can realize the automatic cycle of taking materials from the storage rack and sending to the sawing completion (including the process of material head and tail, the collection of finished work pieces, etc.).• The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, high degree of automation.

Parameters unit Specifications
GKT623B
Saw blade specifications mm Φ285 x2. 0
Cutting range mm 15-65 15-55
Maximum feeding length mm 600 + / - 0.05
Saw blade rotation speed rpm 30-150.
Main motor kw 7.5
The hydraulic motor kw 1.5
Feed drive kw 1.5 Servo motor + ball screw AC
Cutting drive kW 1.5 Servo motor + ball screw AC
Cooling Oil mist cooling
Hydraulic oil capacity L 100L 46#
The compressed air bar 4 ~ 6
Sawing machine size mm L=1670 W=1910 H=1860
Net weight kg 1500
