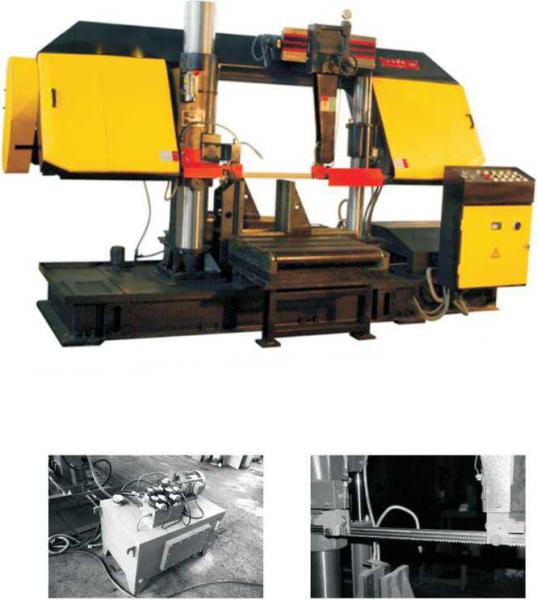

G4250XG 380V 50HZ Horizontal Band Saw Machine For Steel Column Cutting
G4250XG 380V 50HZ Horizontal Band Saw Machine For Steel Column Cutting
Specifications
Brand Name :
HJ
Model Number :
G4250XG
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Voltage :
380V/50HZ
Style :
Horizontal
Usage :
Metal Cutting
Power (kw) :
2.2
Type :
Band Saw
Weight :
4000kg
Description

Product information

G4250XG steel column horizontal band saw machine, mainly used for sawing all kinds of section steel and pipe materials, with angle sawing function, narrow flange, material saving, energy saving, high cutting precision, safe operation, convenient, high production efficiency.

Widely used in Manufacturing Plant, Construction Works , Energy & Mining, Metal Processing Factory.

Parameters unit
G4250XG
Maximum sawing specifications:
For 90° Sawing : A. Shape steel (wide crane type) mm 750X500
B. Round steel mm Φ500
45 When sawing: A. Shape steel (width X height) mm 500X500
B. round stock mm Φ500
Minimum opening of vice (90.When) mm 250
Saw frame brigade turn Angle - 15 ° - + 45O
Angle saw cutting accuracy + / - 0.5 °
Saw blade specification (length X width X thickness) mm About 6185 x41x1. 26
Saw blade speed m/min 17.35.55.75
Main motor power kw 5.5
Hydraulic motor power kw 2.2
Cooling pump power kw 0.12
Feed speed Hydraulic step-less Hydraulic step-less
Hydraulic tank capacity ■ L About 120
Hydraulic system pressure MPA 4.5
Machine input power voltage A.C 380 v, 50 HZ
Table height mm About 800
Weight bearing capacity of fuselage (excluding load bearing capacity of material frame) kg 4000
Length of power frame mm 2000
