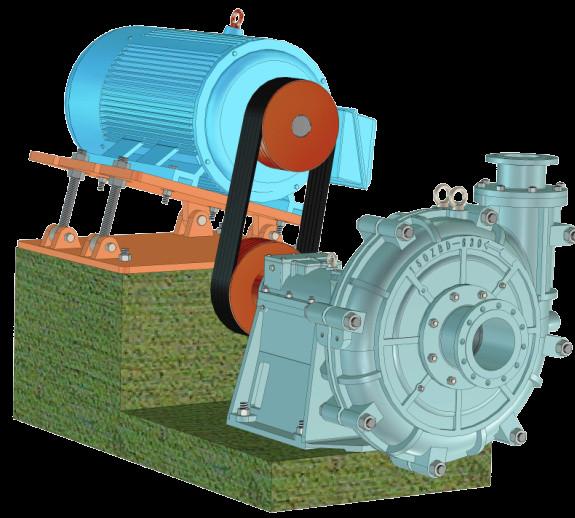

80ZBG(P)-530 Slag Slurry Pump

• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  80ZBG(P)-530	1480	200.0	105.0	60.0	132 -160	980	132.4	46.0	56.9	37-45
  		240.0	101.0	63.1			158.9	44.3	59.8
  		115.9	102.5	46.2			76.8	44.9	43.8
  80ZBG(P)-530A	1480	193.2	98.0	59.7	110~132	980	127.9	43.0	56.6	37-45
  		231.9	94.3	62.8			153.5	41.3	59.6

FAQ

1. Q: What’ the MOQ?

A: Trial sample is ok.

2. Q: Are you factory or trading company?

A: We are a manufacturer.

3. Q: Can you accept to use our logo?

A: Yes, we can do OEM for you.

4. Q: How can I get the pump?

A: Usually we suggest express for samples, if the volume reaches 1m³,the seaway will be better.

5. Q: What’s the warranty period?

A: 1 year
