40ZBG-200 Slag Slurry Pump

• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

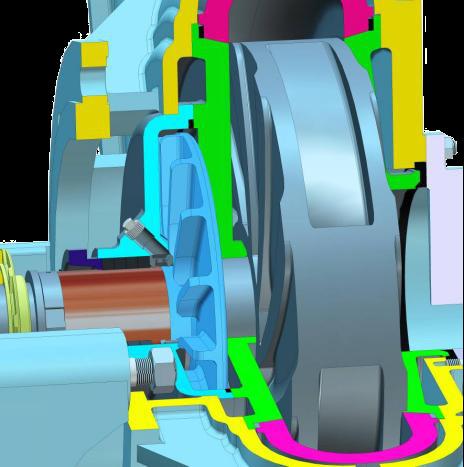

• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

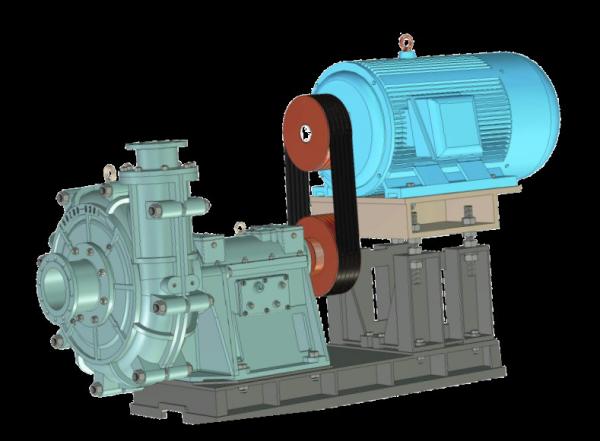

• And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  40ZBD-200	2930	32.0	50.0	55.0	11-15	1430	15.6	11.9	49.1	1.5-2.2
  		38.4	48.4	58.5			18.7	11.5	52.2
  		18.0	45.5	41.5			8.8	10.8	37.0
  40ZBD-200A	2930	30.0	44.0	54.5	11-15	1430	14.7	10.5	48.6	1.5-2.2
  		36.0	42.6	57.9			17.6	10.1	51.6
  		16.7	39.3	41.0			8.2	9.4	36.5
  40ZBD-200B	2930	27.9	38.0	53.9	7.5 ~ 11	1430	13.6	9.1	47.9	1.5-2.2
  		33.5	36.8	57.3			16.3	8.8	51.0
