4bar Metal Cutting Saw Machine , 120RPM Heavy Duty Circular Saw Machine
4bar Metal Cutting Saw Machine , 120RPM Heavy Duty Circular Saw Machine
Specifications
Brand Name :
HJ
Model Number :
GKT624B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Description

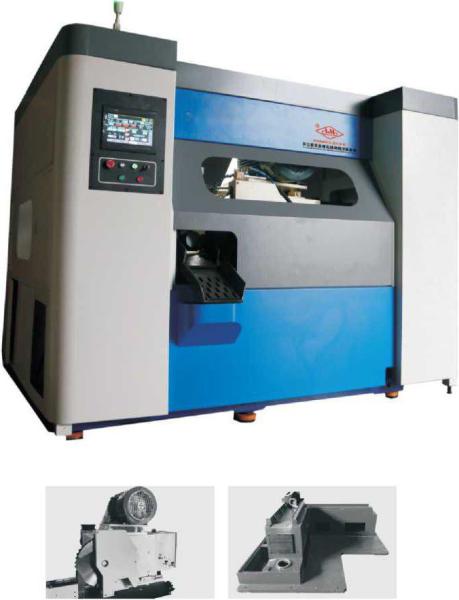

HJ Atomatic CNC Circular Metal Cutting Saw Machine

Product application

The product is mainly used for cutting black or non-ferrous metal materials. carbide or cermet circular saw blades have been used as cutting tools and adopts CNC system to control, which can realize the automatic cycle of taking materials from the storage rack, sending to the sawing completion (including the process of material head and tail, the collection of finished work piece, etc., can be completed automatically).

• The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.

Parameters unit Specifications
GKT624B
Saw blade specifications mm Φ460 x2. 7
Cutting range mm Round bar 050 -150 squar bar 50 -110
Maximum feeding length mm 600 + / - 0.05
Saw blade rotation speed rpm 20 ~ 120
Main motor kw 11
The hydraulic motor kw 2.2
Feed drive kw 2.0 servo motor + ball screw AC
Cutting drive kw 2.0 servo motor + ball screw AC
Cooling Lubricating cooling
Hydraulic oil capacity L 100L 46#
The compressed air bar 4 ~ 6
Saw machine size mm L=2100 W=2060 H=1760
Net weight kg 3000
