2.2kw 40m/Min Metal Cutting Horizontal Band Saw Automatic
2.2kw 40m/Min Metal Cutting Horizontal Band Saw Automatic
Specifications
Brand Name :
HJ
Model Number :
G4225/GZ4225Z
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Voltage :
380V/50HZ
Condition :
New
Weight :
1400kg
Style :
Horizontal
Usage :
Metal Cutting,Woodworking
Power(w) :
2.2kw
Description

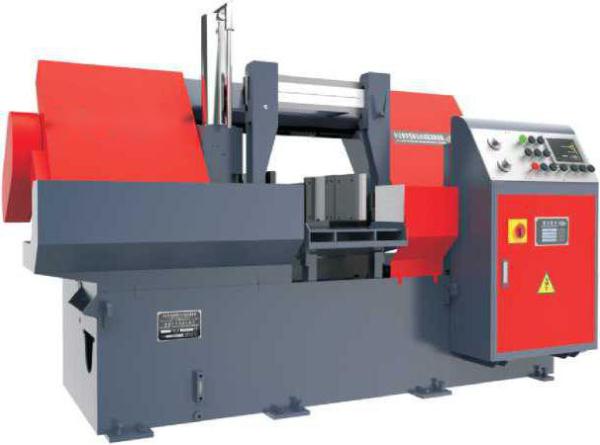

Hydraulic CVT Automatic double column horizontal band saw machine

Product information

This product is mainly used for cutting ferrous metal material single piece or batch blanking operation. Suitable for cutting and step processing of all kinds of metal bars with specifications of 250mm. It can be equipped with beam forming device to cut small specification materials .

Widely used in variety fields of mechanical processing.

Parameters unit Specifications
G4225 GZ4225
Maximum saw specification
Round stock mm φ250 φ250
Square stock mm 250X250 250X250
Minimum saw specification mm
Saw blade specifications mm 27 x0. 9 x3505 27 x0. 9 x3505
Saw blade speed m/min 27, 40, 54, 75 27, 40, 54, 75
Feed speed mm/s 0.2-5 (Hydraulic CVT) 0.2-5 (Hydraulic CVT)
Feeding speed mm/s 50
Main motor power kw 2.2 2.2
Hydraulic system pressure MPa 2.2 ~ 2.8 2.2 ~ 2.8
Table height mm 700 700
Maximum single feed length mm manual 400
Specification for clamping of bunching device mm 250x (20-80) 250x (20-80)
Machine tool dimensions mm 2020X1990X1350 2020X1990X1350
Net weight kg 1400 1800
