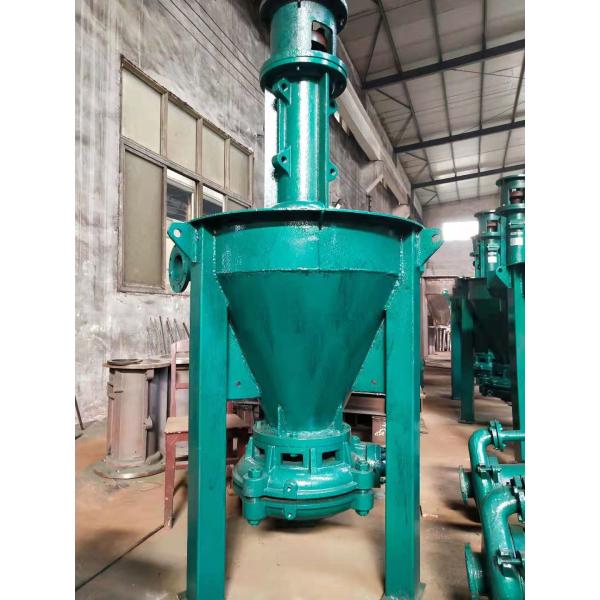

Steel 700r/Min Mud Slurry Pump , 37kw Froth Pump 150S-PM
Steel 700r/Min Mud Slurry Pump , 37kw Froth Pump 150S-PM
Steel 700r/Min Mud Slurry Pump , 37kw Froth Pump 150S-PM
Steel 700r/Min Mud Slurry Pump , 37kw Froth Pump 150S-PM
Specifications
Brand Name :
TM
Model Number :
150S-PM
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per month
Delivery Time :
1-2 months
Packaging Details :
Standard export packing
Usage :
metallurgy,mining,coal,chemical industry field
Voltage :
380v
Feature :
mud suction pump
Oem :
can be accept
Condition :
new
Type :
Mud Pump
Description

150S-PM Froth Slurry Pump

Steel 700r/Min Mud Slurry Pump , 37kw Froth Pump 150S-PM
PM series froth pump has the characters of simple structure ,easy installation and high degree generalization.
Pump head:it is the same as that of ZBD,ZBB series slurry pump, with double pump shell structure.Pump body, cover,front guard plate etc are universal with ZBD,ZBB series of the same diameter slag slurry pump.According to the different conveying medium, the material of the flow part can choose metal,rubber or other non-metallic materials.

The material box adopts steel structure, with tangential inlet and overflow box will return the excess material to the material pool.Tangential inlet allows the slurry into the pump quickly, which can eliminate some of the foam.

Transmission parts: it is universal with LP, LPR series pump. According to the need of customers. Direct transmission or belt one can be choose.

Type

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff

n

%

Shaft Power Pa

kw

 Driven Type Motor Type
Type Power kw Voltage V
150S-PM 700 144.0 25.0 45.0 21.79 BD

Y280S-8

Y280M-8

37

45

 380
240.0 22.8 52.0 28.66
288.0 21.2 52.6 31.62
660 135.8 22.2 44.7 18.39 BD

Y225M-6

Y250M-6

30

37
226.3 20.3 51.7 24.18
271.5 18.8 52.3 26.68
620 127.5 19.6 44.4 15.35 BD

Y250M-8

Y280S-8

30

37
212.6 17.9 51.3 20.19
255.1 16.6 51.9 22.27
580 119.3 17.2 44.1 12.66 BD

Y225M-8

Y250M-8

22

30
198.9 15.7 50.9 16.65
238.6 14.6 51.5 18.37
540 111.1 14.9 43.7 10.30 BD

Y225S-8

Y225M-8

18.5

22
185.1 13.6 50.5 13.55
222.2 12.6 51.1 14.94
500 102.9 12.8 43.3 8.25 BD

Y200L-8

Y225S-8

15

18.5
171.4 11.6 50.1 10.85
205.7 10.8 50.6 11.97
460 94.6 10.8 42.9 6.49 BD

Y180L-8

Y200L-8

11

15
157.7 9.8 49.6 8.53
189.3 9.2 50.2 9.41
420 86.4 9.0 42.5 4.99 BD

Y160L-8

Y180L-8

7.5

11
144.0 8.2 49.1 6.56
172.8 7.6 49.6 7.24
380 78.2 7.4 42.0 3.74 BD

Y160L-8

Y180L-8

7.5

11
130.3 6.7 48.5 4.92
156.3 6.2 49.0 5.42
340 69.9 5.9 41.4 2.71 BD

Y160M2-8

Y160L-8

5.5

7.5
116.6 5.4 47.8 3.57
139.9 5.0 48.4 3.94


PM Series vertical froth pump is widely used in metallurgy,mining,coal,chemical industry field.suitable for conveying abrasive or corrosive slurry containing foam.The foam in the slurry can be effectively eliminated. When the incoming material is insufficient, it sill can work normally. Especially suitable for all kinds flotation process flow. It is an ideal product for conveying foam slurry.
