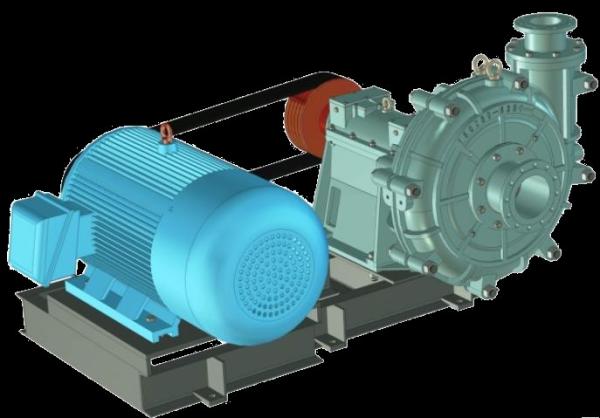

Low Abrasion Horizontal Slurry Pump , 160kw Slurry Handling Pumps 150ZBD-630
Low Abrasion Horizontal Slurry Pump , 160kw Slurry Handling Pumps 150ZBD-630
Low Abrasion Horizontal Slurry Pump , 160kw Slurry Handling Pumps 150ZBD-630
Low Abrasion Horizontal Slurry Pump , 160kw Slurry Handling Pumps 150ZBD-630
Specifications
Brand Name :
TM
Model Number :
150ZBD-630
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
1-2 months
Packaging Details :
Standard export packing
Description

150ZBD-630 Slag Slurry Pump

The reliable design grants the tremendous improvement in MTBF.

Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.

The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

Type

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw
150ZBD-630 980 500.0 62.0 71.0 160~ 200 740 377.6 35.4 68.9 75-90
600.0 59.1 73.1 453.1 33.7 71.0
285.1 59.1 59.2 215.3 33.7 57.5
150ZBD-630A 980 475.2 56.0 70.6 132 -160 740 358.8 31.9 68.6 55-75
570.2 53.4 72.7 430.6 30.4 70.6
269.4 52.7 58.8 203.4 30.1 57.1
150ZBD-630B 980 449.0 50.0 70.2 110~132 740 339.1 28.5 68.1 55-75
538.8 47.7 72.3 406.9 27.2 70.2
255.6 47.5 58.5 193.0 27.1 56.8
150ZBD-630C 980 426.0 45.0 69.8 110~132 740 321.7 25.7 67.8 45-55
511.2 42.9 71.9 386.0 24.5 69.8
