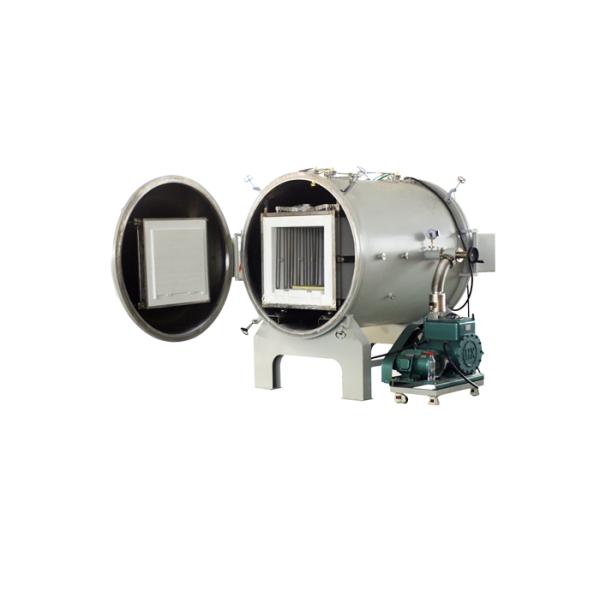

Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder
Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder
Specifications
Brand Name :
Brother Furnace
Model Number :
BR-WYA
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Sets per month
Delivery Time :
7-30 Working days
Packaging Details :
Strong wooden box for global shipping
VACUUM :
10 Pa
MAX. TEMPERATURE :
1600℃
CAPACITY :
192L ~ 576L
Heating element :
MoSi2 Heating Element
Multi-zone temperature control :
Yes
Special Gas Circuit :
Yes
CHAMBER :
Ceramic Fiber
Temperature CONTROL :
50 Programmable Temperature Meter PID Adjustment
MAX. HEATING RATE :
20°C /min
TEMPERATURE ACCURACY :
±1℃
TEMPERATURE UNIFORMITY :
±5℃
Description

Non-pressure Furnace

High Temperature Non-pressure Furnace, 1600℃ 10pa Vacuum Furnace for Si3N4 Powder

Non-pressure atmosphere furnace is equipped with Vacuum System, when the air in the chamber pumped out, inlet high purity N2 into the chamber, and sintering under the N2 protective environment. When used for the production of high purity Si3N4 powder, the N2 and Si powder can fully react, the flour extraction rate can reach 92%.


Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder

  • Ceramic Fiber Chamber, Mosi2 heating element, max. temperature can be 1600℃
  • Can realize multi-zone temperature control as per heating zone length, make sure the temperature uniformity of the working chamber.
  • Chamber bottom adopts high strength alumina brick, with loading car rail, can easily load sintering material.
  • Double-pole rotary mechanical pump, the vacuum can be 10Pa.
  • Special gas circuit design, High purity N2 inlet into the chamber through the gas circuit after deoxidation and dewatering treatment, exhaust at the release port of chamber, thus ensure N2 can circuit effectively.
  • Sliding furnace tank design, can maintenance conveniently.

Optional Spares:

  • Si3N4 loading box
  • Si3N4 protection board

Technical Parameter:

Model Heating Zone (3 zone) Temperature Power Voltage
BR-WYA-4412 400*400*1200mm 1600℃ 60KW 380V
BR-WYA-6616 600*600*1600mm 1600℃ 105KW 380V

Why Us?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test
