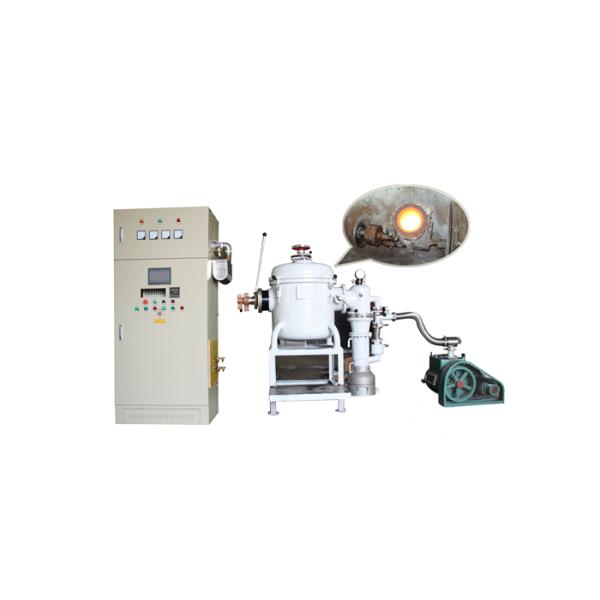

Induction High Temperature Vacuum Melting Furnace Medium Frequency Alloy Feeder
Induction High Temperature Vacuum Melting Furnace Medium Frequency Alloy Feeder
Specifications
Brand Name :
Brother Furnace
Model Number :
BR-RLL
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Sets per month
Delivery Time :
30-50 Working days
Packaging Details :
Strong wooden box for global shipping
Max Vacuum :
0.006 Pa
MAX. TEMPERATURE :
1700℃
Capacity :
10 ~ 200 kgs
Frequency :
1500 ~ 4000 HZ
Heating Element :
Copper Tube Induction Heater
Observation Window :
Yes
Feeder :
Alloy Feeder
TEMPERATURE CONTROL :
50 Segments Programmable And PID Auto Control
Description

Vacuum Induction Melting Furnace

High Temperature Vacuum Induction Melting Furnace, Medium Frequency Up to 1700℃

The vacuum melting furnace adopts the theory of medium frequency induction heating and builds a high vacuum system so that the metal could be melted under a high vacuum situation. This furnace is widely used in many kinds of research and production, such as nickel and special steel, precision alloy, activity metal, high temperature alloy, magnet material, etc. Also suitable for the vacuum precision cast of small parts.

Induction High Temperature Vacuum Melting Furnace Medium Frequency Alloy Feeder

  • Adopt IGBT medium frequency power supply, the max temperature is 1700℃.
  • The vacuum system is composed by mechanical pump,roots pump,diffusion pump, the max vacuum level is 6x10^(-3)Pa.
  • The alloy feeder built inside. The material can be fed into melting crucible by operating the feeder handle.
  • The furnace cover is equipped with an observation window, easy to observe the performance of the furnace.
  • Induction heater consists of a rectangular copper tube, through the two mating nuts fixed on the electrode, easy to disassemble.
  • The crucible could be placed inside the inductor. The crucible material should be following the melt alloy type.

Technical parameter:

Model Capacity Max.temp Frequency Voltage Power Ultimate vacuum Cooling water
BR-RLL-10 10kgs 1700℃ 4000HZ 220V 35KW 6x10-3Pa 1.5m3/H
BR-RLL-25 25kgs 1700℃ 2500HZ 250V 50KW 6x10-3Pa 2.5m3/H
BR-RLL-50 50kgs 1700℃ 2500HZ 300V 100KW 6x10-3Pa 10m3/H
BR-RLL-100 100kgs 1700℃ 2000HZ 300V 160W 6x10-3Pa 10m3/H
BR-RLL-150 150kgs 1700℃ 2000HZ 320V 175KW 6x10-3Pa 10m3/H
BR-RLL-200 200kgs 1700℃ 1500HZ 350V 200KW 6x10-3Pa 10m3/H


Why Us?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test
