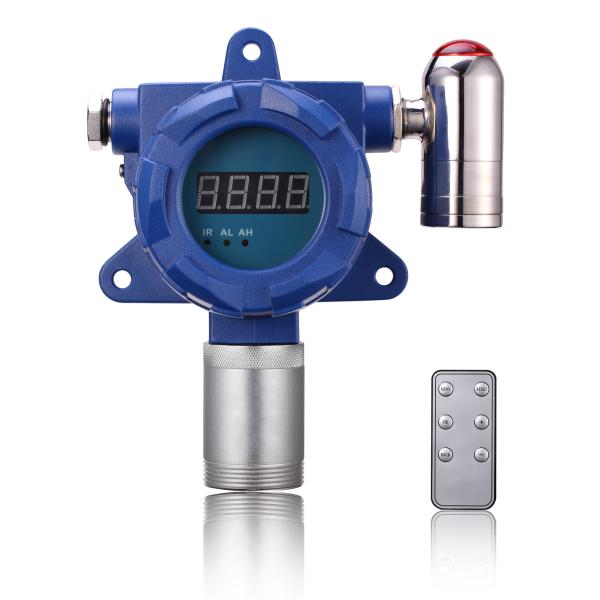

Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor
Specifications
Brand Name :
SZYUANTE
Model Number :
YT-95H-A
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 pieces/week
Delivery Time :
3-5 working days
Packaging Details :
Aluminum Suitcase
Detected gas :
NH3
Sensor Principle :
Electrochemistry
Measure Range :
0-100,500,1000ppm
Resolution :
0.1,1ppm
Install method :
Wall-mounted, piping type, flow-type
Power supply :
24V DC
Gross weight :
3 KG
Product Size :
180*150*90mm
Warranty :
1 Year
Description

Freezing industry fixed type NH3 Ammonia gas monitor with eletrochemistry sensor

Product Overview

YT-95H-A series is a 24h continuously monitoring fixed gas detector, which is the hot-selling and cost-effective type of products. YT-95H-A has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. It is with infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Product Features

  • 1. Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system

    2. an output one or two on-off signals, can drive ventilator or solenoid valve and other external devices

    3. Two-stage alarm with sound and light, alarm point is settable

    4. Use imported US/UK original sensors to keep the high precision and fast response

    5. Working Voltage:12-36V DC

    6. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures

    7. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65

    8. Monitor the CH4 Methane gas concentration in environment or pipeline and alarm

    9. Case:die-cast aluminum + stainless steel (alarm light)

    Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor


Specification

Gas detected NH3
Detection principle Electrochemistry
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-100,500,1000ppm
Resolution
0.1, 1ppm
Precision ≤± 1-2% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg

The picture provided from our clients

Freezing Industry Fixed Type NH3 Ammonia Gas Monitor With Eletrochemistry Sensor

Safegas Company advantages

1.As a professional manufacturer of gas detectors, we controls the whole process from design-development-production-sales, ensuring the consistency of product quality. We have more than 100 patents of independent intellectual property rights in design and development; In production, we have skilled technical workers and a complete industrial line, can grasp the production and quality of products throughout the process; In addition, our company has rich sales experience in overseas, the professional sales team can provide customers with 7*24h service.

2.We have a professional R&D team, who have been engaged in the gas detection industry for about 25 years, with absolute professional technical knowledge and a lot of experience in dealing with technical problems, to provide after-sales service for customers.

3.We implement a strict quality management system and produce gas detectors based on the principle of quality first, so we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
