Wireless Data Transmit 0 - 100%LEL Fixed Combustible Gas Detector With Pump Sampling
Wireless Data Transmit 0 - 100%LEL Fixed Combustible Gas Detector With Pump Sampling
Wireless Data Transmit 0 - 100%LEL Fixed Combustible Gas Detector With Pump Sampling
Wireless Data Transmit 0 - 100%LEL Fixed Combustible Gas Detector With Pump Sampling
Specifications
Brand Name :
SZYUANTE
Model Number :
YT-98H-A
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 pieces/week
Delivery Time :
3-5 working days
Packaging Details :
Carton
Detected gas :
LEL combustible gases
Sensor Principle :
Electrochemical, Catalytic combustion
Measure Range :
Customized
Resolution :
Customized
Install method :
Wall-mounted, piping type, flow-type
Power supply :
24V DC
Gross weight :
5 KG
Product Size :
320*210*110mm
Warranty :
12 month
Description

Wireless Data Transmit 0-100%LEL Fixed Combustible Gas Detector With Bulit-in Pump Sampling


Company profile

We mainly focus on the design, production, and sales of high-end gas detection equipment and systems. There are portable and fixed oxygen, toxic gas, explosive gas and other detectors, mainly used for industrial purposes. All sensors (the main components of the detector) we use are imported from the United States, Japan, South Korea, and Europe, including brands such as Alpha, City, Ion, Honeywell, and are at the same level as brands such as BW, Drager, RAE, MSA, etc. In addition, all products have passed ATEX certification.

Our advantage

Quality: Sensors and ICs from top international brands/100% production testing to ensure good quality

Certification:Completed ATEX/ CE/Rohs/ISO9001/certification, compliant with government standards, ensuring your safety and health
Innovation: A strong R&D team (investing 5% of revenue in research and an experienced engineering team) makes our products stand out in the market
Professional technical support: Provide detailed pre-sales and after-sales technical support, without worrying about any issues during use.
Professional: Focusing on gas detection equipment for more than ten years, we have collaborated with well-known enterprises such as Huawei, Samsung, Panasonic, and Lenovo. We provide you with professional solutions with rich experience.

Product Overview

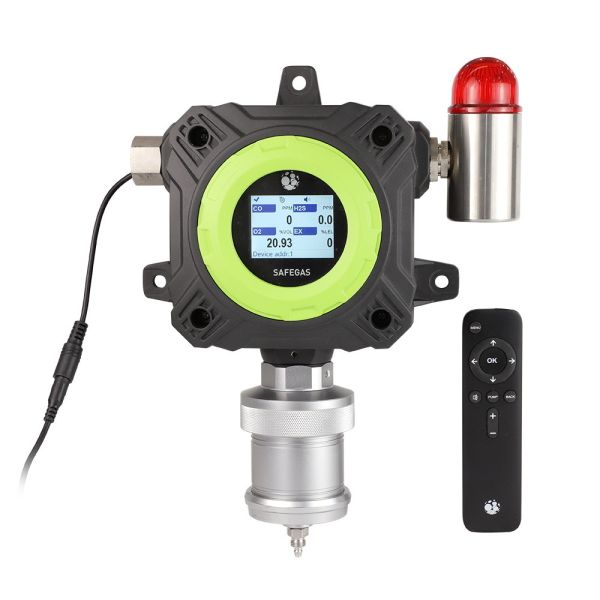

YT-98H-A is a series with a built-in pump gas detector. Its built-in constant flow and powerful suction pump make its detection accuracy higher, and its response time is 2.5 times faster than the Diffusion model on the market. When the target gas is lighter than air, it does not need to be installed at a height and can quickly obtain detection results.

Wireless Data Transmit 0 - 100%LEL Fixed Combustible Gas Detector With Pump Sampling

Product Advantages

  • Infrared remote control, easy to operate.
  • Can monitor multiple gases, up to 6 types.
  • Imported sensors such as Honeywell, Nemoto, ION, etc. have high accuracy and reliability.
  • The use of an internal pump ensures faster flow and sampling speed, ensuring response time.
  • The detector casing is made of die-cast aluminum, which is durable and durable.
  • 2.4 inch color display screen with a resolution of 320 * 240
  • Optional wireless 4G data transmission, customers can view data atex certification anytime and anywhere on the cloud platform, explosion-proof level: Ex dCT6.

Specification

Gas detected LEL combustible gases
Detection principle Electrochemical, Catalytic combustion
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range Customized
Resolution Customized
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display
2.4 inch color display, resolution 320*240
Wireless output (optional):
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
 Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light
Language:
Chinese / English
Dimensions
(H x W x D) 320*210*110mm
 Weight ≤2kg

Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)
Oxygen(O2)
Ozone(O3)
Carbon monoxide(CO)
Carbon dioxide(CO2)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
Formaldehyde(CH2O)
