RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree
Specifications
Brand Name :
SZYUANTE
Model Number :
YT-95H-A
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 pieces/week
Delivery Time :
3-5 working days
Packaging Details :
Aluminum Suitcase
Detected gas :
H2
Sensor Principle :
Catalytic combustion
Measure Range :
Specified according to application
Resolution :
Specified according to application
Install method :
Wall-mounted, piping type, flow-type
Power supply :
24V DC
Gross weight :
3 KG
Product Size :
180*150*90mm
Warranty :
1 Year
Description

RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree

4-20mA RS485 signal output flammable gas H2 leak monitor IP65 protection degree

Company profile

For years, Yuante always insists on the management concept
Market is Orientation;Innovation is motivation; Quality to survival;
Development to growth”. With friendly, open and strict corporate
culture and standardized management, Yuante gathers a lot of
talents, and builds up the management team and R&D team.
All the staff cooperates well in product development,
production and maintenance, and has a deep understanding
of the concept of customer oriented ”and has the service spirit
through the company operation and management, to win the
trust and support from custmers.

Product Overview

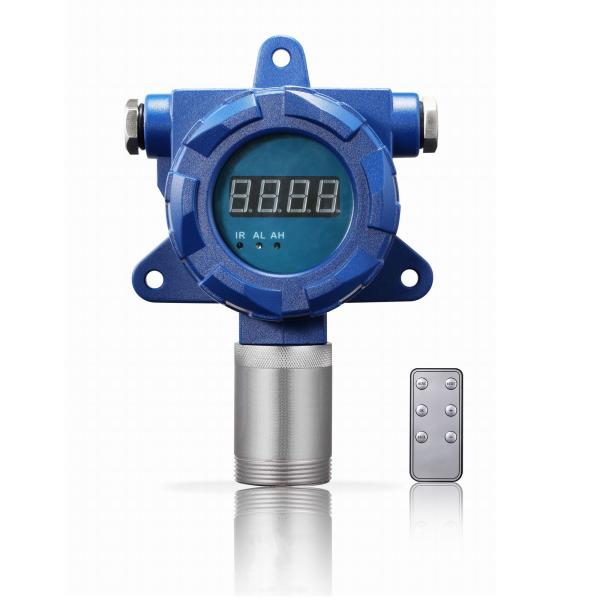

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.

Fixed H2 Analyzer​ Advantages:

1. Explosion-proof design, fast, reliable and stable.

2. With self-calibration function and three standard keys will be used to realize on-site maintenance.

3. Sandard equipped with three-wire system 4-20mA, RS485 and Inner Relay(24Vdc 100mA) output, external AC relay is optional;

4. Infrared ray controller can remote control alarm point settings

5. Zero calibration, and address modification

6. With self-calibration and zero calibration function to make sure the detection more accurate and reliable


Specification

Gas detected H2
Detection principle
Specified according to application
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range
Specified according to application
Resolution
Specified according to application
Precision ≤± 1-2% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg

RS485 Signal Output H2 Flammable Gas Detector IP65 Protection Degree

Fixed H2 Analyzer Features:

1. Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system

2. an output one or two on-off signals, can drive ventilator or solenoid valve and other external devices

3. Two-stage alarm with sound and light, alarm point is settable

4. Use imported US/UK original sensors to keep the high precision and fast response

5. Working Voltage:12-36V DC

6. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures

7. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65

8. Monitor the CH4 Methane gas concentration in environment or pipeline and alarm

9. Case:die-cast aluminum + stainless steel (alarm light)

FAQS

  • Can I have a sample order? Yes, we welcome sample order for to test and check quality
  • Do you have a MOQ limit? No, we don't, one piece is also welcomed
  • .What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
  • What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
  • How about packing? Aluminum suitcase, carton box
Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction
