Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
Specifications
Brand Name :
Safegas
Model Number :
SKY3000
Certification :
CPA
Place of Origin :
Shenzhen,China
MOQ :
1 pcs
Price :
500-2000 US$
Payment Terms :
T/T, Western Union,Credit card
Supply Ability :
1000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
High-grade aluminium alloy carrying case
Test principle :
,Electrochemistry,Catalytic Combustion
Target point Calibration :
Multipoint Calibration
Detect mode :
Pumping Suction
Weight :
0.365kg
Testing gas type :
Ammonia (NH3)
Transmission :
Bluetooth,LORA,4G
Package material :
Aluminium Alloy
Description

Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction

  • Product overview

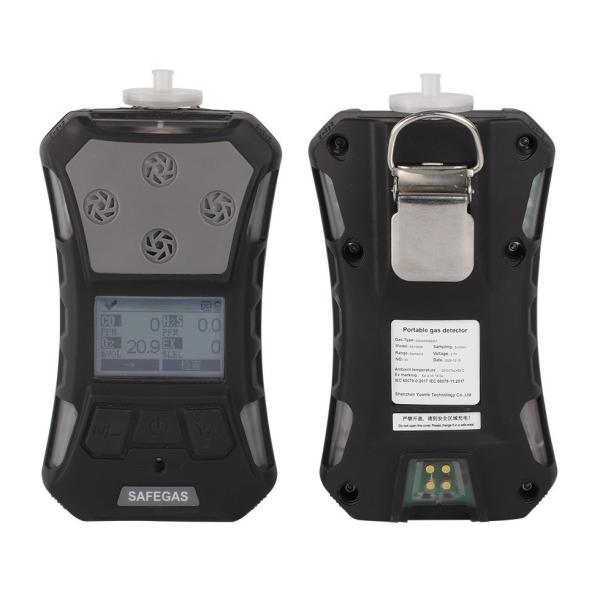

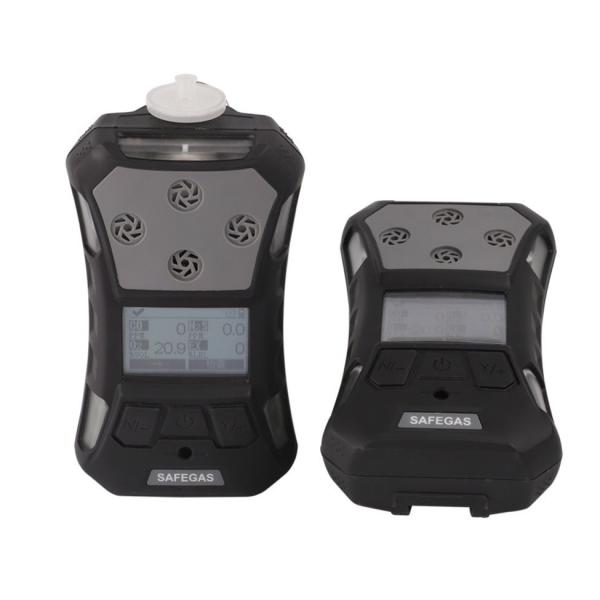

SKY3000 Series is a portable gas detection and alarm device with pump, which can detect various toxic and harmful gases including oxygen, combustible gases including carbon monoxide, hydrogen sulfide, TVOC and ammonia. The detection and alarm device has the functions of one-key safety monitoring, one-key opening of storage, automatic image rollover, fall alarm, etc. The optional LORA,WIFI, Bluetooth wireless transmission function enables the security personnel to obtain the instrument data and alarm status in real time.

The gas detection and alarm instrument has obtained IECEx,ATEX and China explosion-proof certification at the same time. The explosion-proof level can reach EX ia IIC T4 Ga/EX ia I Ma, which is suitable for the detection in area 0, Area 1 and coal mine. The instrument has passed the antistatic test and the protection level has reached IP67

  • Specificiation
Sampling method pump suction & diffusion dual-use type
Gas type Customized
Measure range Customized
Response time ≤30 seconds
Precsiion ≤±2%F.S
Language English
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched
Display monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga
Certification
(EU regulations)		 2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX)
Protection grade IP67
Working temperature -20ºC~+50ºC
Humidity 0~90%RH(no condensation)
Environmental pressure 86~106Kpa
Size 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight 365g (including battery, belt clip and filter)

  • Package

Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction

  • Services
  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.
