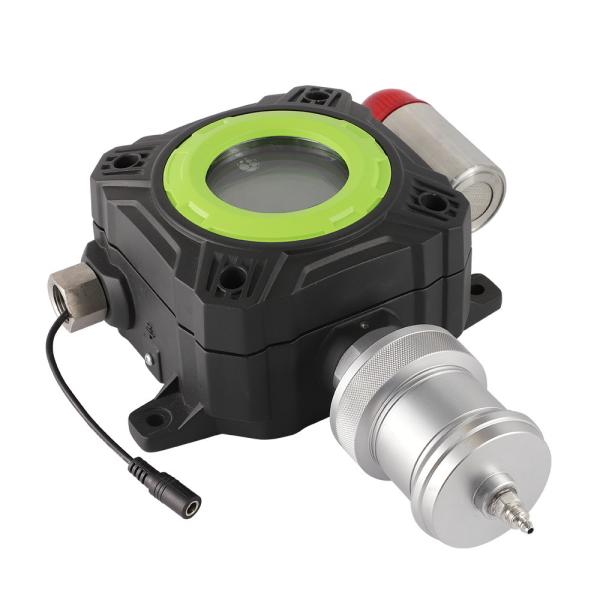

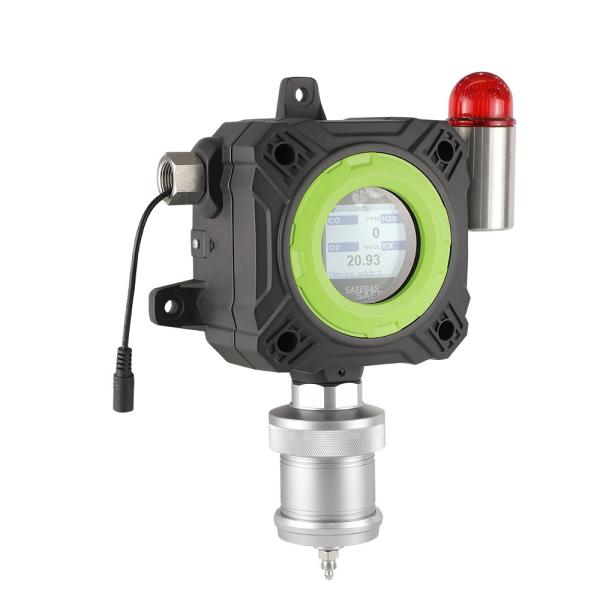

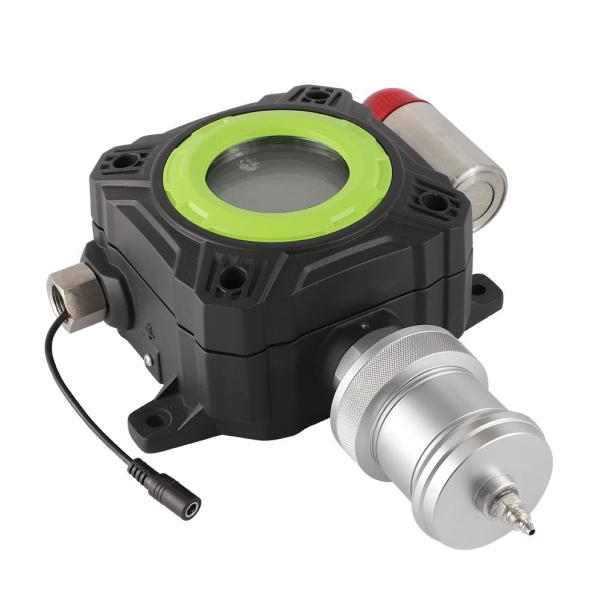

NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction
Specifications
Brand Name :
YuanTe
Model Number :
YT-95H-WH
Certification :
SIL CE ATEX CNEX ISO9001-2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Credit Card
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 days
Packaging Details :
Carton Box
Detected Gas :
Nitrogen Oxides(NO,NO2,etc..)
Measure Range :
0-10/20/50/100/250/500/1000/2000/5000ppm
Sampling Medthod :
Internal pump
Detect principle :
Electrochemistry
Install Method :
Wall mounting
Display :
2.4 Color Display
Power :
12-36 VDC
Signal output :
4-20mA,RS485,Relay,24Vdc
Packing material :
Die-cast Aluminum
Explosion grade :
Ex d IIC T6 Gb IP65
Description

NO NO2 Nitrogen Oxides Ex db IIC T6 Gb Explosion Proof Certificate Multi Gas Detector With Pump Suction

Product overview
The YT-98H series is a built-in pump suction multi gas detector that can simultaneously detect 1-6 types of gases and continuously monitor various gas concentrations online for 24 hours. Using a 2.4-inch high-definition color screen to display on-site concentration in real-time, and outputting 4-20mA, RS485 standard signal for remote data transmission. The YT-95H-B series has advanced circuit design, mature kernel algorithm processing, and has obtained multiple software work patents and appearance patents. YT-95H-B series can detect the concentration of gas in pipelines, confined space, and atmospheric environments, as well as gas leakage. The instrument is equipped with a constant flow rate and a large suction pump, ensuring accurate detection and faster and more sensitive response than diffusion models. When the target detection gas is lighter than air, it does not need to be installed at a height and can quickly and safely obtain detection results.

Specification

Sampling method Built in pump
Pump flow rate 0.35-0.5 L/Min

Gas detected

NO(Nitric Oxide), NO2(Nitrogen Dioxide), according to customer's requirements

Detection principle

Electrochemistry, sensor and ic are imported from UK, fast response and high precision

Install method

Wall-mounted, piping type, flow-type (according to the detected environment)

Measure range

0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-250ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm(Measure range is optional)

Resolution

0.001ppm, 0.01ppm, 0.1ppm, 1ppm

Precision

≤± 2% FS

Signal output

4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)

Response time

≤10S

Recovery time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(FS/year)

Display

High-light nixie tube display

Connection mode

G1/2 external thread explosion-proof flexible pipe

Unit

ppm, mg/m3, g/m3, %LEL, %VOL

Temperature

-20 to 50°C

Humidity

0-95%RH

Explosion-proof

Ex d IIC T6 Gb

Degree of protection

IP65

Alarm

Sound, light

Operating time

24H

Dimensions

286*202*96mm (H x W x D)

Weight

3.4kg (3.8kg with alarm light)

NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction

NO NO2 Nitrogen Dioxide Multi Gas Detector Explosion Proof With Pump Suction

Advantages

1. Multiple transmission signals and outputs

The zero correction function and full software automatic calibration function make gas monitoring more accurate and reliable.

Standard 4-20mA, RS485 signal, optional 2 sets of relay signals, 1 set of relay signal output.

Sound and light alarm function, there will be sound and light alarm when reaching the alarm point.

For harsh environments with high humidity, high temperature, and high dust, a pre-treatment system can be selected for cooling, dehumidification, and dust removal to protect the lifespan of the detector.

2. Internal suction pump, fast response

Built in constant flow large suction pump, accurate detection, faster and more sensitive response than diffusion model.

3. Capable of detecting multiple gases and displaying various digital displays

Up to 6 gases can be detected simultaneously. In complex and multi gas environments, multiple installations can be reduced, saving time and effort.

2.4 inch industrial grade high-definition color screen with a resolution of 320 * 240120 degrees wide viewing angle.

Supports ppm and mg/m3 display units. The unit can be switched freely, and the concentration value is automatically converted by the device.

4. Can support wireless transmission (optional)

Optional wireless module (4G&Rolla), data can be uploaded to cloud platforms, environmental protection agencies, or other platforms, providing SMS reminder function, transmission signal is not limited by distance, and can be viewed in real-time on mobile phones or computers.
