HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card
Specifications
Brand Name :
Yuante
Model Number :
SKY8000
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, Visa, Master Card
Supply Ability :
1000 pieces/Month
Delivery Time :
5 - 7 working days
Packaging Details :
Aluminum Suitcase
Detecting gas :
Can detect upto 18 gases
Sensor Type :
Combustible: catalytic combustion principle or infrared principle; oxygen: electrochemical principle or zirconia principle; toxic: electrochemical principle; CO2: infrared principle; VOC: PID photo ion principle; CH4: catalytic combustion principle or infr
Measure Range :
0～1、10、100、1000、5000、50000、100000 PPM；0-100mg/L、200mg/L； 0-100%LEL；0-10%、20%、50%、99.999%、100%Vol（Measure range is optional and customerized）
Resolution :
0.001 PPM（0-1 PPM)；0.01PPM or 0.001 PPM（0～10 PPM）； 0.1 PPM or 0.01 PPM（0～100 PPM）；1 PPM or 0.1 PPM（0～1000 PPM）； 1 PPM（0～1000 PPM）；0.01mg/L（0～200%mg/L）；0.1%LEL（0-100%LEL)；0.01%(0-100%VOL)
Application :
Power plant, petrochemical, pharmaceutical, building, mine, metallurgical coking
Sampling method :
Pumping suction
Display :
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm :
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Language :
Chinese/English
Warranty :
1 year
Description

HCHO VOC TVOC CL2 PH3 HCL Toxic gas analyzer gas leakage with built-in printer and 32G memory card

Factory Profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.

We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.

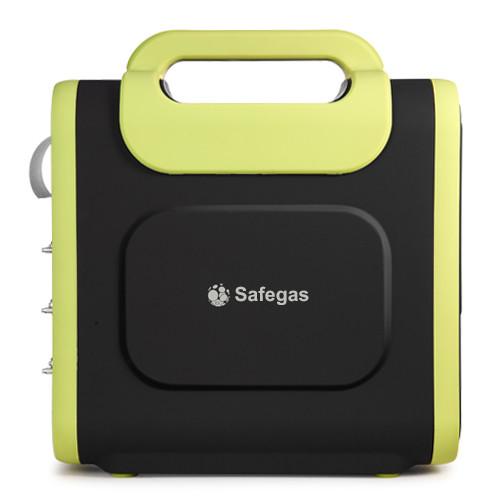

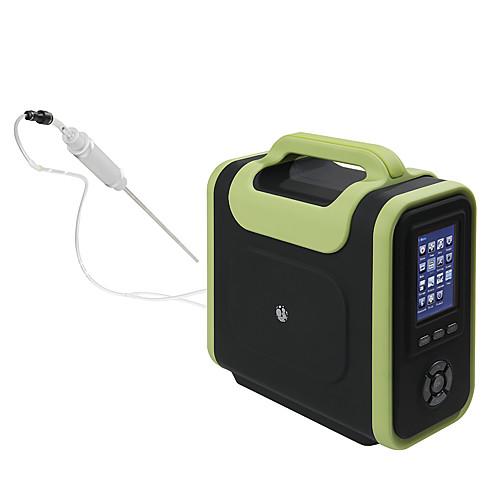

Product overview

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components and support to detect 1-18 types gas at the same time. It is with built-in pump, ensuring fast response. SKY8000 has standard 32G SD memory card to store and export data by U-disk easily. For the flue gas and exhaust gas environment, it can support with optional high temperature probe to detect.
In addition, it has optional built-in printer for real time data printing and with wireless communication so user can access to real-time data and alarm status remotely.


Product advantage

  • Support to monitor 1-18 gas types
  • 3.5-inch color LCD display support both real time data
  • and chart, user friendly
  • Built-in pump gas sampling, faster response
  • Equipped with multi-layer filtering, protect sensor from
  • oil, water vapour, dust
  • Standard 32G SD memory card to store and export data
  • by U-disk easily
  • Support Lora and other wireless communication
  • (Optional)
  • Support built-in printer for real time data printing
  • (Optional)
  • High temperature, high humidity environment
  • measurement (Optional)

HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card

Specification

Sensors

Various principle sensors HCHO VOC TVOC CL2 PH3 HCL Toxic gas can be combined in any number , up to 18 sensors;

Combustible: catalytic combustion principle orinfrared principle;

oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infrared principle;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.

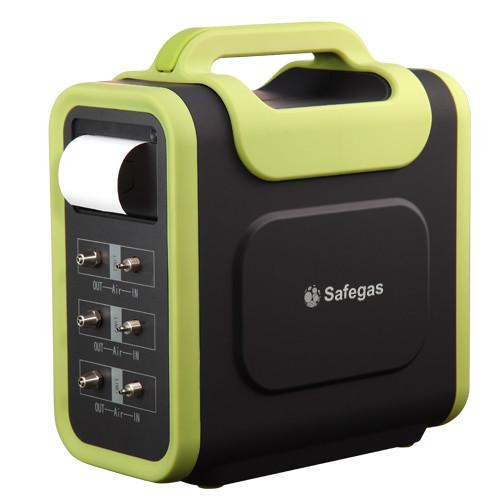

With built-in printer, real time data will be printed

HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card

HCHO VOC TVOC CL2 PH3 HCL Toxic Gas Analyzer With Built-In Printer And 32G Memory Card

FAQ

Q1: Are you factory or trade company?
A1: We are factory.


Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available


Q3: Does your company accept customization?
A3: We do customizing service for customers.


Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.


Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.

Q6: How about the Calibration?

A6: Before send out, we will calibrate each pieces well with standard gas.

Q7: What certifications do you have?

A7: ATEX CE ISO9001-2015.

Application

Petrochemical & Chemcial Industry, Municipal Engineering & Utilities, Agricultral & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries.

Used in coal mines, Used in sewers and underground areas, applied in Oil & Gas industries like Shell or Petros, applied in confined spaces like warehouse, ships, factories,ect.
