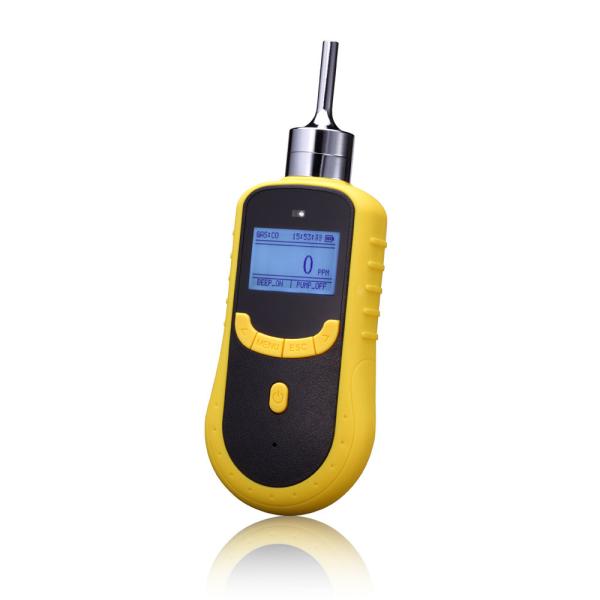

0-100% LEL EX Methane CH4 Combustible Gas Detector
0-100% LEL EX Methane CH4 Combustible Gas Detector
Specifications
Brand Name :
YuanTe
Model Number :
SKY2000-EX
Certification :
CNEX,ISO9001,CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
1000 pieces/week
Delivery Time :
3-5 working days
Packaging Details :
Aluminum Suitcase
Detected Gas :
EX
Measure Range :
0-100%LEL
Sampling Method :
Pumping Suction
Alarm Type :
Sound, Light, Vibration
Size :
270*75*41mm
Weight :
400g
Charging Method :
Power Adapter, USB Cable
Packing :
Corrosion Resistant Suitcase
Warranty :
1 year
Sensor :
Catalytic Combustibel
Description

Portable Pumping Type Methane Combustible Gas Detector CH4 gas with 0-100%LEL

  • Characteristics:
  • Employing original imported first-class brand sensor.
  • LCD dot matrix display, the gas type, unit, concentration,

local time can be showed on the screen.

  • Support Chinese and English operation, easy to shift.
  • Built-in micro sampling pump.
  • Explosion-proof certification, explosion-proof grade: ExibⅡCT4



Specifications

Gas Detected EX/CH4
Detection principle Catalytic Combustible
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-100%LEL
Resolution 1%LEL
Precision ≤± 2% F.S.
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Response Time ≤10S Recovery Time ≤10S
Network frequency 2.4G high frequency Pressure measurement 0.5-2.0 bar (optional)
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof Ex ic IIC T3 Gc Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 270*75*32mm Weight 300g

Functions:

Monitor the specified gas concentration in environment and enclosed space
and alarm.
With Self-calibration and zero calibration functions, makes the
detection more accurate and reliable.
One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures
or pressures.
Two-stage alarm with sound and light, alarm point is settable.
Rechargeable lithium polymer battery of large capacity.
Employing pumping sampling method and the pumping suction is adjustable. Special
engineering plastics housing of high intensity, anti-skipping,
water-proof, dust-proof, explosion-proof.
Elegant and exquisite aluminum alloy suitcase

Services:

  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.
