Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight
Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight
Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight
Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight
Specifications
Brand Name :
Yuante
Model Number :
SKY6000-O3
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, Visa, Master Card, Credit card
Supply Ability :
3000 pieces/Month
Delivery Time :
3-5 working days
Packaging Details :
Aluminum Suitcase
Detecting gas :
O3
Sensor Type :
Electrochemistry
Measure Range :
0-1/10/20/50/100/500/1000PPM
Resolution :
0.001/0.01/0.1/1PPM
Sampling method :
Pumping suction
Alarm :
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Language :
Chinese/English
Warranty :
1 year
Host weight :
400g
Host size :
170*75*41 mm（No probe and water trap filter）
Description

Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight

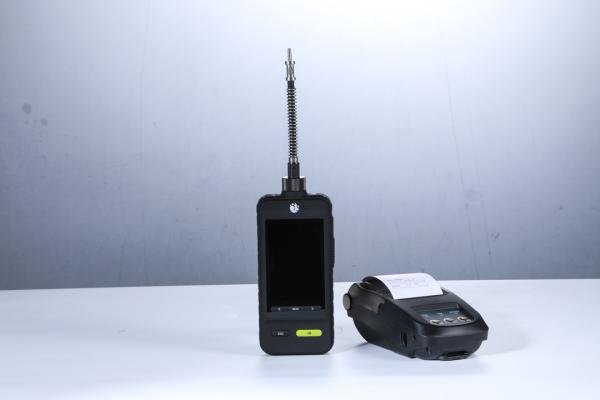

SKY6000 is a handheld portable gas detection alarm. The instrument can be flexibly configured with single or multiple gas sensors; it adopts 3.5-inch high-definition IPS LCD color screen, 150-degree wide viewing angle, Chinese and English operation interface; three alarms of sound, light and vibration, optional fall alarm function, underground The safety of the operator is more secure; the air inlet is equipped with a waterproof and dust proof filter, which is suitable not only for daily ambient air but also for the damp and dusty monitoring environment; the built-in gas pump with adjustable ten-speed flow can be used. Customized gas detection flow for different detection environments, can be detected normally under 6m/S high-speed airflow; strong resistance to electric transients, It also has the extended function of Internet of things, long standby time of large-capacity lithium battery; high-strength engineering materials for instrument casing The unique shape design combines practical ergonomic operation.

Color Display Single O3 Portable Gas Detector Show Both Curve And Data With FlashlightColor Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight

Comprehensive functions
1. Imported miniature vacuum suction pump from Germany: stable flow, long life, low noise, support remote sampling
2. Equipped with three-layer filter to filter oil, water, dust and other impurities efficiently.
3. Gas concentration data display and gas concentration real-time curve display modes are switchable.
4. Pump flow rate can be adjusted with 10 grades, gas detection flow rate can be customized according to different testing environments.
5. Optional external Bluetooth printer, can realize mobile print(Optional function)
6. One-click screen capture function, save detection data, curve in image format
7. Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are optional (Optional function)
8. Various gas units can be shift easily, concentration value are converted automatically by the system
9. With temperature and humidity detection and compensation function
10. Chinese and English display are switchable
11. Large capacity fast storage function, storage space can be customized
12. Micro-USB charging interface is designed to be charged anytime, anywhere with common data lines and mobile power
13. Large capacity rechargeable lithium battery for longer standby time
14. High temperature, high humidity and dust environment gas detection can be achieved (optional pretreatment probe)
15. Tasteless, Explosion-proof, Waterproof, Heat - Resistant, High – Temperature Resistant, Corrosion Resistant, ABC material Suitcase

Specification

Gas Detected O3
Detection principle Electrochemistry
Sampling Method Built-in pump suction sampling, select high-quality micro pump, small noise and vibration. 10 grades adjustable, flow range: 0-500 cc/Min.
Measure Range 0-1/10/20/50/100/500/1000PPM
Resolution
0.001/0.01/0.1/1PPM
Display content
Gas name or gas chemical formula, concentration data, unit of measurement, trend of gas curve, battery power, time, pump status, etc Optional: temperature, humidity, pressure, Bluetooth status, printer status, screen capture status, etc.
Alarm Buzzer, searchlight and alarm status prompt on the display, low battery alarm
Data record
Automatic measurement data recording function, interval storage and alarm storage, can customize the recording time interval, standard storage of 100,000 history records or alarm records; optional independent 8G memory card, other capacity options.
Communication
and data download
The TXT document for storing data can be quickly downloaded by con-
necting to the computer directly via USB; the TXT document can be con-
verted into an Excel document by using the PC software.

Print function

(Optional)

 Optional external Bluetooth printer

Print content

(Optional)

 Real-time concentration data and historical data
Charger
Universal Micro-USB charging interface, 5V/2A standard charger
Language Chinese/English

Wireless network

(Optional)

 LORA, BLUETOOTH
Wireless transmission
distance (optional)
 LORA (open space) up to 3500m, BLUETOOTH (Bluetooth) up to 10m
Network frequency(optional) 398-525MHZ(LORA),2.4GHZ BLUETOOTH

Packing
Standard Accessories
1. Gas detector
2.5v/2a Charger, Micro-usb Cable (1 Piece)
3. Qualification Certificate&Warranty Card
4. Hydrazine Filter (1 Piece)

5. Non - toxic, tasteless, explosion-proof, waterproof, heat - resistant, high - temperature resistant,

corrosion resistant suitcase (1 set)

Color Display Single O3 Portable Gas Detector Show Both Curve And Data With Flashlight

Optional Accessories

Portable Bluetooth Printer (Including Charging Base, Rechargeable Lithium Battery)
High Temperature Flue Gas Probe (One Set)
Bending Probe
