Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Specifications
Brand Name :
safegas
Model Number :
SG100
Certification :
ATEX/IECEX
Place of Origin :
China
MOQ :
1 piece
Price :
320USD
Payment Terms :
T/T
Supply Ability :
8000 pcs per month
Delivery Time :
3-5days
Product name :
Fixed Gas Detector
Measure Range :
Specified according to application
Gas :
Combustible Gases
Sensor Type :
Specified according to application
Language :
Chinese/English
Alarm Type :
Light+Sound+Vibration
Detection Principle :
Electrochemical, NDIR, Catalytic, PID, etc
weight :
1KG
Size :
157.8x128.8x69.6mm
Power dissipation :
Toxic gas<2.5W,flammable gas<4W
Communication mode :
4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Description

Product video




Our advantages

Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install

Product description

Shenzhen Yuante Technology Co., Ltd., founded in 2010, is a dynamic force in the gas detection industry. Our company is renowned for its strong R&D capabilities, constantly pushing the boundaries of gas detection technology. We have a dedicated team of experts who are passionate about innovation.
With gas detectors at the core of our business, we offer a diverse range of products. Whether it's detecting toxic gases in chemical plants, monitoring oxygen levels in confined spaces, or ensuring safety in oil refineries, our detectors are up to the task. Our product lines are designed to meet the unique requirements of different industries, providing accurate and reliable gas detection solutions.
We also focus on international cooperation, integrating global technological insights into our R&D process. This allows us to stay at the forefront of the industry and offer products that are competitive on the global stage. At Yuante, we are committed to providing high - quality gas detection equipment and services, making us a trusted partner for customers around the world.

Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install
Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install


Product advantage
  • IP66/IP68 water & dust resistant

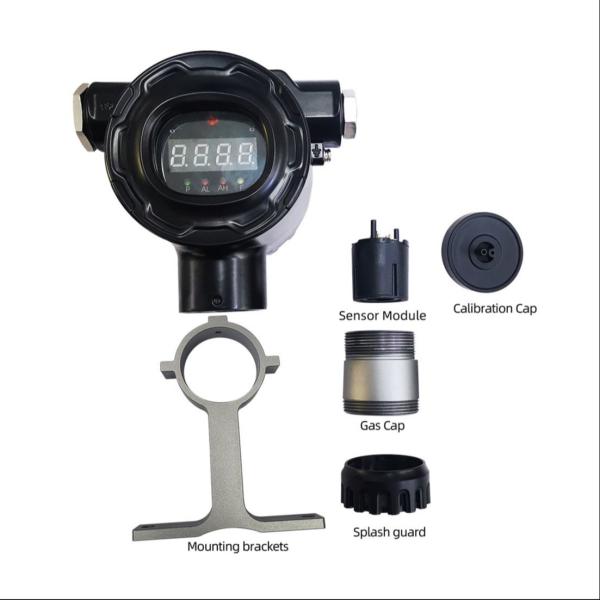

  • Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for
  • outdoor installation or environment with water splash.
  • Small and light, weight is only 1 kg,and the detector
  • comes with standard mounting bracket, easy for installation

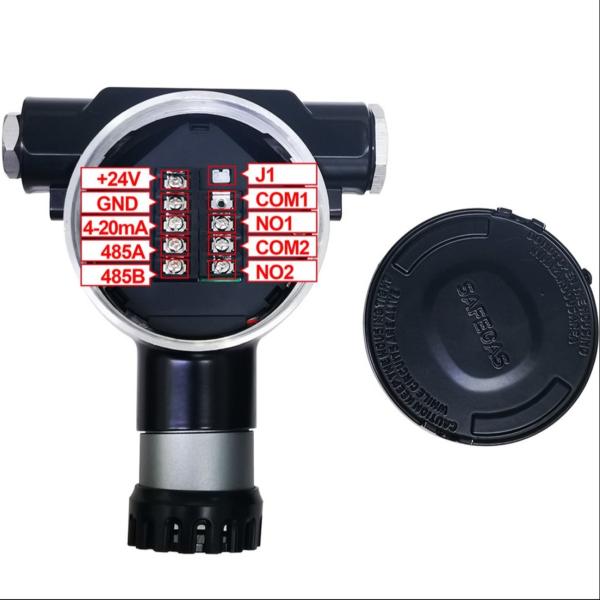

  • Standard 4-20 mAanalogsignal output andRS485
    modbus signal output, optionalHart output, 2 wire output.
    Compatible with most of control systems.
  • The detector comes with 3 relays, including low/high/fault
    alarm relay(Optional)


Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install

company profile

Shenzhen Yuante Technology Co., Limited came into being in 2010. For the past sixteen years, it has been unwaveringly focused on the design, production, and marketing of high - end gas detection equipment and systems. With gas detectors as its mainstay, the company has developed all - inclusive production lines and industry - specific solutions across various sectors such as Oil, Chemical, and Environmental Protection. After nearly a decade of dynamic expansion, Yuante has firmly established itself as a prominent entity within the industry.
Innovation lies at the heart of Yuante's business model. Guided by the market, driven by innovation, and committed to quality and development, the company has fostered a corporate culture that is both inviting and exacting. This, combined with its standardized management practices, has enabled it to attract top - tier talent, thereby building a high - caliber management and R & D team. Every member of the Yuante family, from R & D to production and customer service, is united in their dedication to the customer - centric approach. Their strong service ethos has been pivotal in winning over customers.
In the realm of gas detectors, precision and prompt response are non - negotiable. Yuante, through continuous innovation and by integrating independent R & D, collaborative efforts, and international technological insights, has developed products that are not only at the forefront domestically but also competitive globally. The company is in a constant state of evolution, always striving to exceed customer expectations.


Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install

certifications

Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install

FAQ

Cost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to InstallCost-Effective Fixed Detector for Detecting Combustible Gases in Warehouses Easy to Install

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy ≤±2-5%FS (Depending on the specific sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
LED display
Explosion-proof
grade		 IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；
ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade
IP66/68
Power dissipation
 Toxic gas<2.5W,flammable gas<4W
Communication
mode
4-20mA(3-wires),RS485 1～5V,Hart(Optional)
Working voltage 12-24VDC
Size 157.8x128.8x69.6mm
Weight LORA, 4G(Optional)
Wireless

≤±1%
