Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
Specifications
Brand Name :
sincoheren, Monaliza ,ExQ-Laser
Model Number :
Monaliza-2
Certification :
CE,Medical CE,FDA,TGA,TUV,CFDA
Place of Origin :
Beijing, China (Mainland)
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per week
Delivery Time :
1-3 weeks
Packaging Details :
Internation standard package
Laser type :
High energy Q-Switched Nd:YAG
Wavelength :
1064nm; 532nm
Pulse width :
8ns; 8ns
Pulse energy :
1000mJ; 500mJ
Pulse energy Range :
100~1000mJ; 100~500mJ
Frequency :
5Hz
Description

Q Switch ND YAG laser for colorized tattoo removal & pigmentation removal best laser pigmentation removal machine

Treatment Principle


The machine utilizing the explosive effect of the ND: YAG LASER, the laser permeates the epidermis into the dermis and takes effect on pigment mass and is absorbed by pigment. Since the laser pulses is extremely short in nanosecond and comes with super high energy, the pigment mass would swell quickly and break into small pieces, which will be eliminated through metabolism. In this case, the pigments become lighter gradually and finally disappear.

Technical Parameters

Basic parameters:

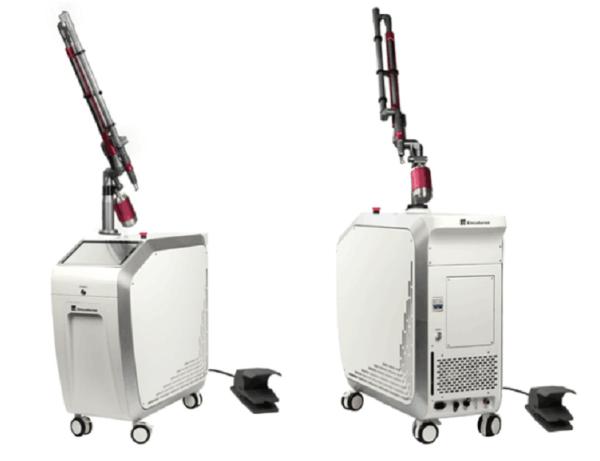

1. Dimensions (without articulated arm, Width×Length×Height): 370 mm ×957 mm ×992 mm；

2. Total weight(include articulated arm): <80kg;

3. Power input: 1200VA;

4. Rated current of leakage:10A;

5. Repetition Rate: 1-5Hz;

6. Nominal ocular hazard distance: NOHD 3.3km,

Note: operation shall be in a closed room and make sure to wear goggles!

7. cooling system: built-in closed circulating water cooling;

Photoelectric property:

1. Laser output mode: Q-switched pulse;

2. Laser wavelength: 1064/532nm；

3. Pulse Duration: 5ns±1ns;

4. Maximum pulse energy in the end of articulated arm: 500mJ@1064nm；200mJ@532nm；

5. Error oflaser output energy: ≤±20%;

6. Spot size:2-10mm continuously adjustable, error less than ±20%;

7. aiming beam wavelength: 635 nm; output power Pc shall be 0.1mW≤Pc≤5mW;

8. The distance betweenspot center and aiming beam center ≤0.5mm;

Application

Tattoo Removal, Treatment of Vascular Lesions, Treatment of Pigmented Lesions, Incision, Excision, Ablation, Vaporization of Soft Tissue for General Dermatology.

1064nm

532nm

Tattoo Removal

*Dark ink: blue and black

Tattoo Removal

* Light ink: red

* Light ink: sky blue and green

Treatment of Pigmented Lesions

* Nevus of ota

Treatment of Vascular Lesions

* Port wine birthmarks

* Telangiectasias

* Spider angioma

* Cherry angioma

* Spider nevi

Treatment of Pigmented Lesions

* Cafe-au-lait birthmarks

* Solar lentiginos

* Senile lentiginos

* Becker's nevi

* Freckles

* Nevus spilus

Nd YAG Q Switched Laser For Tattoo Removal / Vascular Lesions Removal Long Pulse
