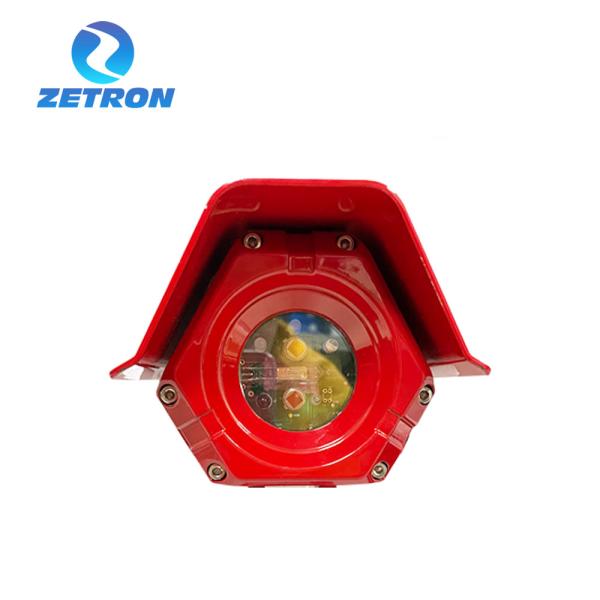

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
Specifications
Brand Name :
Zetron
Model Number :
MIC200
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 500-- 3000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
paper carton
Product name :
Infrared UV Flammable Gas Detector
Gas :
Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
IR Sensor :
4
Response Spectral Range :
4-6um
Viewing Angle Range :
90 °
Output :
RS485,4~20mA
Humidity :
≤95% RH
Protection Grade :
IP66
Description

MIC200 Infrared Flammable Gas Detector

OVERVIEW

The 3-band infrared flame detector is a high-quality and reliable flame detector that uses advanced flame analysis and identification technology. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains three narrowband infrared sensors (4-6 µm) and an optical filter, which is sensitive to the CO2 emission spectrum (4.4 µm). It has a high sensitivity, which can effectively eliminate interference and achieve effective flame detection at a longer distance.

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µMMic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µMMic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µMMic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM

SPECIFICATION

Response spectral range
4-5um
Response time
5--10s The response time of different media is different
Viewing angle range
90 °
Detection distance
30--50 meter (depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Working current current≤25mA, alarm current≤35mA
Executive standard GB15631-2008, GB3836- 2000 series
Explosion-proof grade
EXdⅡCT6
Protection grade
IP66
Signal output 4~20mA three-wire system output
Installation method wall or ceiling
Cable outlet thread 20mmX1.5mm free conversion G1 / 2 optional
Dimensions
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof

FEATURES & BENEFITS

* Developed by the principle of three-wavelength infrared detection, it is highly immune to false positives.
* High-speed response to fire;
* Built-in high-performance microprocessor;
* Excellent anti-radio frequency and electromagnetic interference performance;
* Reliable system fault self-diagnosis function;
* Three-wire current ring and relay are optional;
* Patent signal processing algorithms to minimize the possibility of false positives;
* Multi-level sensitivity settings to meet different needs in more situations;
* Easy to install, with a detection angle of 360 degrees.
* Exd II CT6 explosion-proof grade, suitable for hazardous sites in zones 1 and 2.

APPLICATION

• Offshore platforms & vessels (FPSO’s)

• Downstream chemical processing plants
• Gas transport and pipelines
• Large storage areas & buildings
• Perimeter detection

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM
