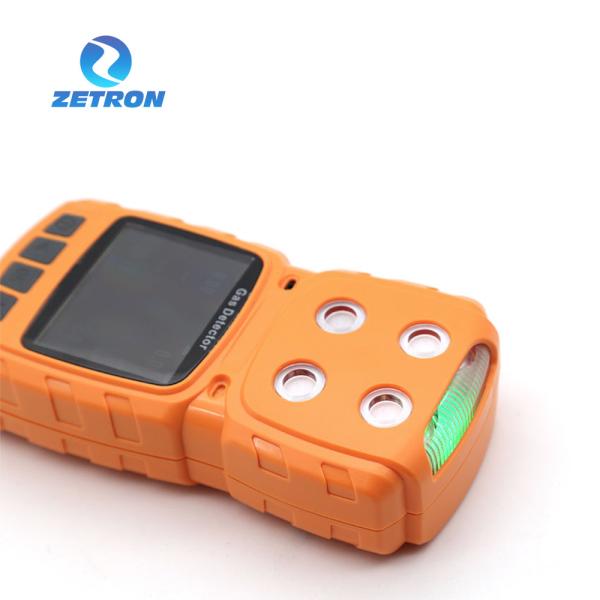

Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Toxic And Harmful Portable Multi Gas Detector MS104K Four In One
Specifications
Brand Name :
Zetron
Model Number :
MS104K
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 145/set- 879/set
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
1000 SET / week
Delivery Time :
1-10 work days
Packaging Details :
130*68*34mm
Product Name :
4 In 1 Gas Detector
Type :
electrochemical sensor gas detector
Function :
PID TVOC air detector
Gas unit :
ppm LEL
Sampling method :
Diffusion Sampling
Alarm Type :
Light+Sound+Vibration
Display :
2.31 inch color screen
Gas :
H2S O2 CO Ex (optional)
Description

Portable Multi Gas Detector

1- 4 Toxic Gas Detector

OVERVIEW

It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely,and can detect gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will emit sound & light vibration as alarm.
It adopted advanced electric circuit design, mature kernel algorithm processing, had achieved a number of patents about the software works, external appearance, and so on.

Toxic And Harmful Portable Multi Gas Detector MS104K Four In OneToxic And Harmful Portable Multi Gas Detector MS104K Four In OneToxic And Harmful Portable Multi Gas Detector MS104K Four In One

Toxic And Harmful Portable Multi Gas Detector MS104K Four In OneToxic And Harmful Portable Multi Gas Detector MS104K Four In OneToxic And Harmful Portable Multi Gas Detector MS104K Four In One

Toxic And Harmful Portable Multi Gas Detector MS104K Four In One

FEATURES

1. Multi-gas made simple, easy to wear, slim and compact
It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely .
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.


2. Compact design, easy to use
Handy and durable, the MS104 is intuitive to operate single-handedly using three function keys.
The easy-to-read color display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.

3. Large Data Storage Management, release and documentation in no time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
It is supported to use the local host to view, and delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.

4. Clear signaling design
The signal system of the MS104K is based on a clear color code: sound & light alarm, vibration alarm, display screen visual alarm.These are also documented in the data logger.

5. Economical Calibration Management
The deviation of the concentration which was detected out by the instrument from the standard gas concentration can be corrected by calibrating the concentration or changing the display coefficients.

SPECIFICATION

Gases to be detected
Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Application scenarios
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error
≤±3% F.S (higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect
the smoke gas at the temperature of 400 ℃ or higher.
Power supply
3.7VDC, 3000mA high capacity rechargeable polymer battery
Display mode
2.31-inch high-definition color screen
Detection mode
Diffusion type measurement. The calibrated flow rate is 500 ml/minute.
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP65
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT4 Ga
Exterior dimensions
130×68×34mm (L×W×H)
Weight
200g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)

APPLICATION

The detector is widely used in petroleum, chemical industry, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.
