Specifications
Brand Name :
Zetron
Model Number :
S305
Certification :
CE, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1000 set/month
Delivery Time :
3-7 days
Packaging Details :
paper carton
Product Name :
Dew Point Monitor for Desiccant and Fridge Dryers
Dew point sensor :
Polymer
Dew Point Range :
-50~+20 °CTd ;-20~+50 °CTd
Temperature Rnage :
-30~+70 °C
Materials :
ABS, Aluminum alloy
Classification :
IP65
Measured gases (Medium) :
Non-corrosive gases
Signal :
4-20 mA 3-Wire
Supply Voltage :
100-240 VA 50/60 Hz ; 24 VDC
Size :
160X105.5X240mm
Weight :
520 g
Description
S305 Dew Point Monitor for Desiccant and Fridge Dryers (-50~+20°CTd / -20~+50°CTd)
OVERVIEW
The SUTO S305 Dew Point Monitor offers a simple and inexpensive dew point monitoring solution, with alarm options. The all-in-one solution serves as a dew point measuring and display device for desiccant and fridge dryers.
FEATURES

· Alarm Indications Before It Is Too Late

Refrigeration dryers are among the dryers in compressed air treatment most commonly used. If the required drying is not achieved, the impact of wet air can be serious: Rust in the pipes, failures of machines, and a negative impact on product quality.

The S305 Dew Point Monitor has an optical red backlight which blinks when an alarm is triggered as well as 2 alarm relays which can be used to connect to alarm lights and sirens to warn when dew points are not within the pre-defined ranges. Two alarm levels can be programmed (pre and main alarm).

· Two Measurement Range Models

The S305 can be ordered in two ranges, to perfectly fit your needs:

Option 1: -50… +20 °C Td

Option 2: -20 … +50 °C Td

· Various Connection Options

The connection to the compressed air network is via a 6 mm quick-connector and corresponding connecting hose. The 4 … 20 mA output can be used to connect the dew point monitor to a PLC or a SCADA system.

· Easy Installation and Robust Design

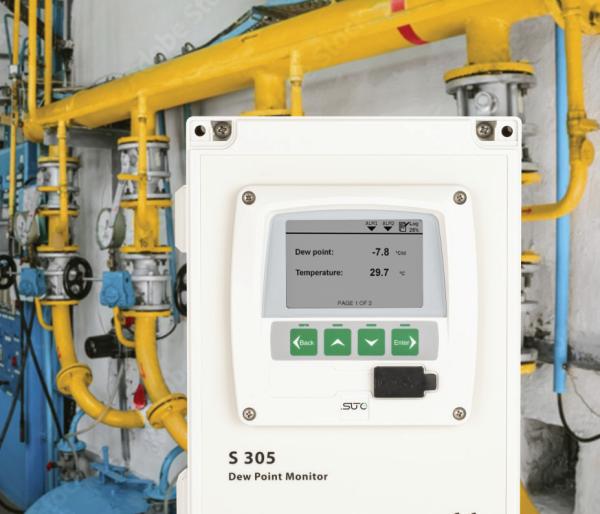

The entire measuring unit is integrated with the display in a rugged housing. The IP65 casing provides robust protection in harsh industrial environments. The dew point monitor is available both as a panel variant or as a wall-mounted housing.

SUTO S305 Dew Point Monitor For Desiccant And Fridge Dryers

APPLICATION SCENES
  • Monitor fridge and desiccant driers
  • Simple after-market installation
  • Monitoring of process humidity and notification in case of alarms
  • Control dew point temperature at a single glance
SPECIFICATION

MEASUREMENT
Dew Point
Accuracy ±2 °C Td
Selectable units °C, °F
Measuring range (model depending) -50 ... +20 °C Td
-20 ... +50 °C Td
Sensor Polymer
Response time t90 (@ 4l/min) -50 °C Td -> -20 °C Td = 20 sec
0 °C Td -> -40 °C Td = 120 sec
Temperature
Accuracy 0.3 °C
Measuring range -30 ... +70 °C
Sensor NTC
Reference conditions
Selectable conditions Pressure Dew Point

SIGNAL INTERFACE & SUPPLY
Analog output
Signal 4 ... 20 mA 3-Wire
Scaling -50 ... +20 °C Td or -20 ... +50 °C Td
Load 250R
Update rate 3 / sec
Supply
Voltage supply (model depending) 100 ... 240 VAC ; 50/60 Hz
24 VDC
Current consumption (model depending) 40 mA @ 220 VAC
120 mA @ 24 VDC

GENERAL DATA
Configuration
PC Software S4C-Display Software
Others Instrument comes pre-configured Plug & Play
Display
Integrated LCD Display, indicates values and alarms
Material
Process connection Stainless steel 1.4301 (SUS 304)
Housing ABS, Aluminium alloy
Sensor Polymer
Metal parts Sinter Filter (stainless steel)
Miscellaneous
Electrical connection Screw terminals
Protection class IP65
Approvals CE
Process connection 6 mm quick connector
Weight 520 g
Operating conditions
Medium Non-corrosive gases
Medium quality ISO 8573-1: 4.6.3 or better
Medium temperature -30 ... +70 °C
Medium humidity ≤ 20 °C Td or ≤ 50 °C Td (model depending)
Operating pressure 0.3 ... 1.5 MPa
Ambient temperature -10 ... +40 °C
Ambient humidity 0 ... 100 % rH
Storage temperature 0 ... +40 °C
Transport temperature -30 ... +70 °C
Stated accuracy under following conditions:
Ambient temperature 23 °C ±3 °C
Process temperature 23 °C ±3 °C
Ambient humidity < 95 %, no condensation
Airflow > 2 l/min at sensor tip
