High Performence Digital Control Industrial Quilting Machine Making Bedspreads

Features of quilting machine:

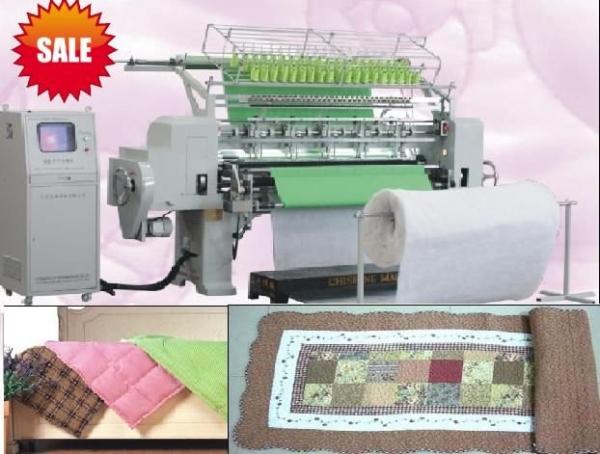

CS94-2 mechanical quilting machine

1. CS: Chishing (HQ7 Japanese shuttle )
2. 94": 94 inches
3. 2: Two needle row
4. Overall dimensions:4600*1100*1650mm
5: weight: 3000kg
6: Running speed: 200-480r/m
7: Needle distance: 25.4mm
8. Rating power: 3.5kw
9. Max. Thickness: 30mm
10. Max. Pattern size: 8 inches by 8 inches (catercornered distance)
11. Output: 20-100m/h
12. Voltage: 380V 3 phase
13. X stroke: 4inch (101.6mm )
14. Stitch length: 2-6mm adjustable
15. Model of needle: 16#, 19#

Application: Winter garments, handbags, Pajamas, gloves, bedding, etc

Chishing has our own accessories producing workshop so that the quality can be controlled, while other factories mostly purchased accessories outside.
Materials: Chishing imported steel from Japan. And the life-span of the machine depends on it.
Other factories use domestic steel.
Pressing board: Chishing uses 3mm or 5mm; other factories use 1.5mm. So the strengh is different.
Bearing: Chishing uses Brand IJK and EASE made in Japan.
Needle: Chishing uses Germany SGHETZ and DOTEC.
Shuttle: HASHIMA, Japanse and Swiss shuttle.
Note: Machines of non-standard specifications can also be manufactured by order of customers with special requiremants.

Details of machine and Company:

Dongguan Chishing Machinery Co., Ltd. was established in 1989 and has immediately secured a leading position in mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.

At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.

Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".

We look forward to hearing from you in the near future.

With over 25 years' development, CHISHING has become a trustworthy textile equipment supplier which is specialized In R&D and manufacture of multi-functional sewing machine, Industrial embroidery machine, computerized quitting machine and other sewing accessories. We have gained several official and industrial recognitions which mainly include:

Terms & Conditions:

The seller is responsible for changing the parts which have the quality problem of the machines in one year, but except from the wearing parts and the quality problem were leaded by wrong operation and other man-made factors, and the quality problem should be confirmed by two sides.

Mechanical multi-needle quilting machine, 64 cam quilting machine, cam model quilting machine, 94 mechanical model quilting machine, supply 94 mechanical model quilting machine.
