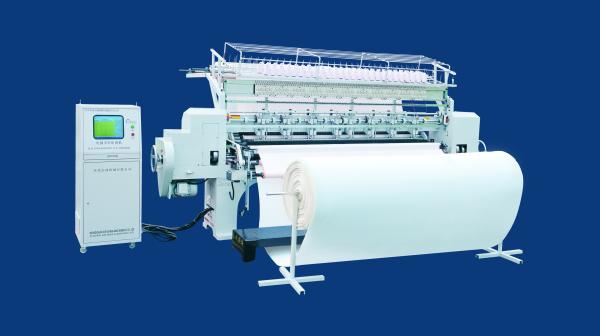

Digital Control Multi Needle Quilting Machine for Making 110 Inches Bedding Products

Features:

1. D: Digital control; S: Small shuttle (HQ7 Japanese shuttle )
2.110": 110inch width (2794mm)
3. 2: Two needle row
4. Overall dimentions: 5200*1100*1600mm
5: Weight: 3500kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤ 30mm
10. Max. Pattern size: 6inch by 6inch

Applications:

European style non-slip mat, cloth art cushion, leather sofa set, sofa cover, a variety of bed mattress, air conditioning quilt, bedding covers, mattress, mattress protectors, sofa protectors, oven gloves, wall decorations, car cushions, prayer mat, summer quilts ,blankets, etc

Technical Data:

Details of machine:

Main features:

This quilting machine Adopting digital control program, speed can be changed digitally.
*Using Panasonic servo motor (optional), saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
* Large number of built-in quilting patterns for your choice, patterns can be changed in a few second.
*Easy and quick make new designs(360degree, and 180 degree, patterns are available. )
*Available features such as high rigidity machine body, perfect protecting equipment and steady going control system, high speed of running, low noise and precise quilting.
*Running state detecting and inditating in order to show how the machine works.
*Production management function, easy for checking the production cost.
*USB interface.
*Using pattern of software 20064
*CAD drawing method to ensure the precision of pattern and facilitate the operation.
*Tack and jump function included
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising, location brake system and CNC speed adjustment.
*Needle bar and pressing block take the double rocks device.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*Particular pattern-editing program to ensure the precision of pattern and facilitate the operation.

Note: This digital control multi-needle quilting machine of non-standard specifications can also be manufactured by order of customers with special requirements.

Advantages of structure:

1. The machine adopts the split type design, and the machine parts which separate with the computer control cabinet has the following advantages:

a. The high speed running machine will not affect the computer control part.

b. It is especially more convenient for those factories who do not have enough space and without big lift and forklift to download and upload the machine, as the weight is spate and also the space is separate.

c. It can reduce the loss during the flood or fire, as our computer cabinet is light and very easy to move for the case of some natural disasters.

One of our customers was unluckily suffered a flood one time, fortunately, his computer cabinet is okay as he can manually move the computer cabinet quickly.

2. The machine adopts a 18.5 inch LCD display

3 .This multi-needle quilting machine adopts professional industrial computer, brand EVOC. It is the latest model of FSC8185 main board. Industrial computer has the ability to work continuously for a long time. Compare with the normal office computer, it has those advantages: dustproof, shocks prevent, fast heat transfer.

Our Services:

1. Installation Services: Installation Services are available. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, he will indicate you how to use this machine well.

2. Training Services: We can provide the free training to customer not more than 10 days either in our factory or customer's factory, we offer Customers Training, teaching, how to use the machine most efficiently and safely as well as how to maintain optimal operational productivity. While the accommodations and travelling expenses should be borne by customer.

3. Warranty Service: 12 months since the date of machine shipped on board, excluding the consumable parts and humanly damaged parts. Broken electrical boards should be returned back to seller.

FAQ:

1. Are you manufacturer or trading company?

In1989, Dong Guan Chi Shing Machinery Co., Ltd. was set up - the first and only one quilting machines manufacturer in China mainland at that time. Welcome to visit our factory.

2. How many countries have your products been exported to?

With the steady expanding export business, our products are exported to USA, Europe, South America, Middle East, Africa, South East countries ect.

3.Which payment term is accepted?

L/C, T/T, Western Union

4. Can you make machines according to customers' special requirement?

Yes, we can. We can make the machine with different voltage according to customers' local voltage. And some special machine models can also be made according to your actual need.
