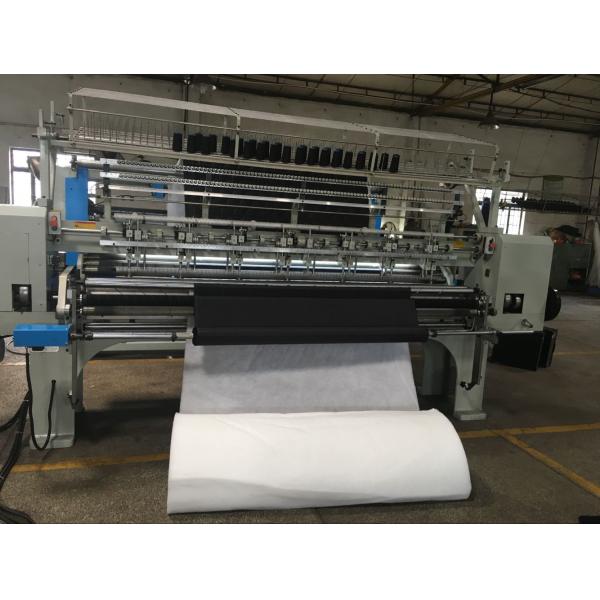

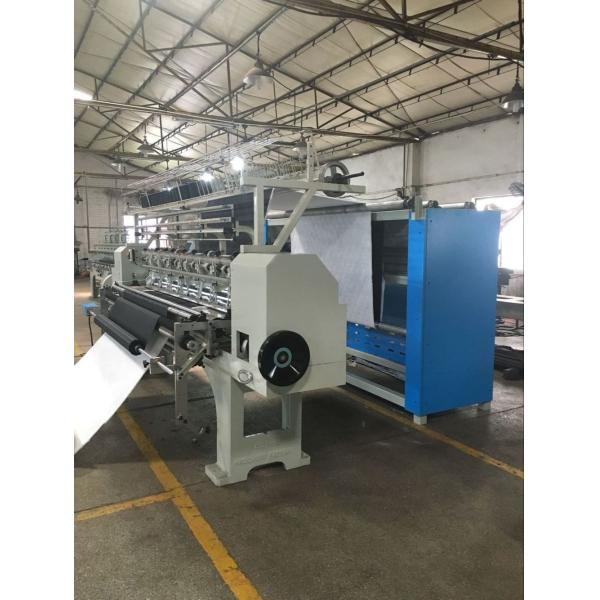

94" digital control Duvet Quilting Machine blankets quilting machine

CS94 digital control multi-needle quilting machine

1. Digital control model
2. Quilting width: 94inch (2388mm)
3. No. of needle bar: Two or three
4. Overall dimentions: 4600*1100*1650mm
5. Weight: 3000kg / 3400kg
6. Quilting speed: 200-500r/m
7. Needle space: 25.4mm
8. Rating power: 3.5kw
9. Quilting thickness: 30mm (400g / m2)
10. Max pattern size is 6inch by 6inch (catercornered distance)
11. Shuttle size:HQ7 or HQ10 (Japanese)
12. X-axis movement: 12inch (304.8mm )
13. Stitch: 2-6mm
14. Output: 20-120meter, 70-80meter, it depends on the quilting patterns.
15. Rated voltage: 380V 3 phase (other voltage can be ordered)
16. Model of needle: 16#, 19#

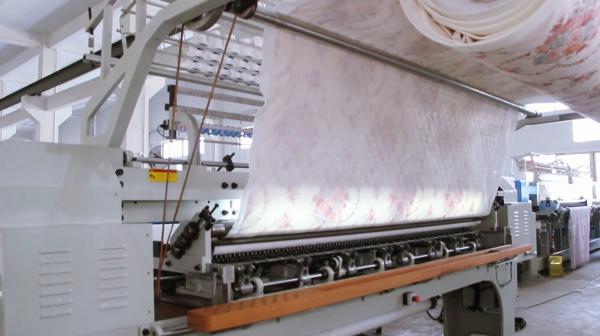

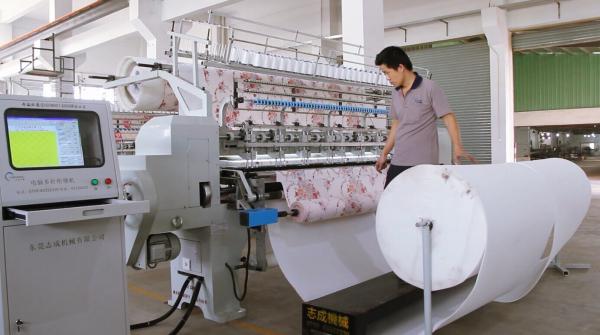

Machine Pictures:

Details of Chishing quilting machine:

Machine Base: In order to reduce vibration, deformation and bold reinforcement, rollers have carried on special heat treatment.

Driving Parts: Servo motor, Drivers and Transducer are Panasonic brand.

Raw Materials Feeding Part:
Because of adopting unique adjustable roller active-feeding system, tension and pressure can be adjusted ideally for different thickness of materials, which can ensure perfect quilting effect without skip stitch and it will not damage the fabric.

The needles and shuttles parts:

Needles parts:
Chishing chooses West Germany needles. Choosing what kind of needles depends on different sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS.
Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.

Shuttles parts:
Chishing imports HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.

CS94 quilting machine has four models:
CS94-2 HQ7 computerized quilting machine
CS94-2 HQ10 computerized quilting machine
CS94-3 HQ7 computerized quilting machine
CS94-3 HQ10 computerized quilting machine

The difference between HQ7 and HQ10:
HQ7 shuttle can hold 60 meters thread (50/2 40/2 thread)
HQ10shuttle can hold 90 meters thread (50/2 40/2 thread)

The difference between 2 needle bar and 3 needle bar:
2 needle bar machine: Max. Pattern size is 6 inch by 6 inch
3 needle bar machine: the Max. Pattern size is 12 inch by 12 inch ( use NO.1 and NO.3 needle row)

Main features and functions:

*this quilting machine Adopting digital control program.

*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by Panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice.

*Easy and quick make new designs.

*360 degrees quilting .

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread (optional)

*Infrared sensors to guarantee the safety of the operator.
