Specifications
Brand Name :
CHIC-BF-1
Model Number :
DGCF18/18/6
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Delivery Time :
25-30 working days
Packaging Details :
wooden box
Production Capacity(500ml)(b/h) :
6000BPH
Filling precision :
≤ ±5mm liquid level
Rinsing head :
18
Filling head :
18
Capping head :
6
Dimension :
2100*1500*2200mm
Description
DGCF 18/18/6 Washing, filling, capping 3-in-1 machine
Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line
Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line

The three-in-one filling machine combines the functions of flushing, filling and sealing on one machine. It is a new type of equipment developed by ourselves with advanced technology from abroad. It combines many years of practical experience in the production of the three-in-one machine for flushing, filling and sealing, and repeatedly absorbs the opinions of users. It meets the requirements of customers for different bottle filling on one machine, and uses the hanging type bottleneck manipulator to make the bottle type replacement convenient and fast. It is mainly used for disinfection, washing, filling and sealing. It is used for filling pure water, mineral water and normal temperature fruit juice. It can be selected by users with different needs.

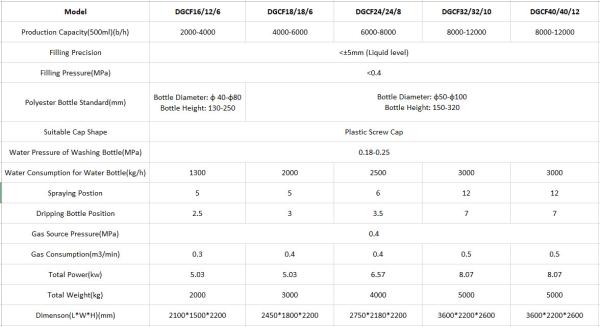

Model DGCF16/12/6 DGCF18/18/6 DGCF24/24/8 DGCF32/32/10 DGCF40/40/12
Production Capacity(500ml)(b/h) 2000-4000 4000-6000 6000-8000 8000-12000 8000-12000
Filling Precision <±5mm (Liquid level)
Filling Pressure(MPa) <0.4
Polyester Bottle Standard(mm) Bottle Diameter: φ 40-φ80
Bottle Height: 130-250		 Bottle Diameter: φ50-φ100
Bottle Height: 150-320
Suitable Cap Shape Plastic Screw Cap
Water Pressure of Washing Bottle(MPa) 0.18-0.25
Water Consumption for Water Bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Postion 5 5 6 12 12
Dripping Bottle Position 2.5 3 3.5 7 7
Gas Source Pressure(MPa) 0.4
Gas Consumption(m3/min) 0.3 0.4 0.4 0.5 0.5
Total Power(kw) 5.03 5.03 6.57 8.07 8.07
Total Weight(kg) 2000 3000 4000 5000 5000
Dimenson(L*W*H)(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600

Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line

Water treatment system

The water treatment equipment includes multiple-filter-medium (JDL-6), sand-bar filter (GL series), fine filter (JML series), fiber active carbon (HML series), sodium-ion exchange (SNJ-3), hollow fiber super-filter (CL series), ultraviolet sterilizer (ZM series), ozonator and etc. Its treatment capacity is 2-30 tons per hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide. Filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water. Reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standards of fresh drink water, even that of mineral water.

Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line

Bottle Blowing Machine
CM-8Y heat-resistant semi-automatic bottle blow molding machine is suitable for producing any shapes of PET containers and volume is from 10-2000ml. 1t is widely used to produce mineral water bottles, carbonated beverage bottles, cosmetic bottles, oil bottles etc. Adopting double crank connecting bar clamping and clamping mold is stable and fast. Adopt for infra-red rotary oven and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the pressure of action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and different parts of refueling system. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, it's easy and safe to be operated by one person.
Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production LineGlass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line
The three-in-one filling machine combines the functions of flushing, filling and sealing on one machine. It is a new type of equipment developed by ourselves with advanced technology from abroad. It combines many years of practical experience in the production of the three-in-one machine for flushing, filling and sealing, and repeatedly absorbs the opinions of users. It meets the requirements of customers for different bottle filling on one machine, and uses the hanging type bottleneck manipulator to make the bottle type replacement convenient and fast. It is mainly used for disinfection, washing, filling and sealing. It is used for filling pure water, mineral water and normal temperature fruit juice. It can be selected by users with different needs.
Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line
Labeling Machine
This machine applies to single side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc., The machine adopts PLC process control, photo-electricity bottle checking and label delivery, it composes of high production efficiency with labeling precise and reliable, operation convenience, and wide adaptive scope etc. Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electricity source place combine with high precise density steel star gear, including automatic suited machinery safety device.
Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line

application area

It is applied to the production of medicine, personal care products, tobacco, food and beverage packaging, wine, dairy products, clothing labels, leather, electronic components, chemical building materials, metal products, product labels and other fields, as well as the effective date, batch number, shift number, enterprise name, trademark and logo.

Applicable materials:

Applicable to marking of various materials, such as paper packaging, leather cloth, plexiglass, plastic packaging, resin plastic materials, bamboo and wood products, coated metal, metal, glass, ceramics, etc.

Glass Bottled Liquid Filling Machine Automatic Sparkling Water Production Line

Hot shrinkable packaging machine


Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, fruit juice, and milk product). During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.
Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.The ideal model of middle-speed heat-shrinking packager in the domestic market.
