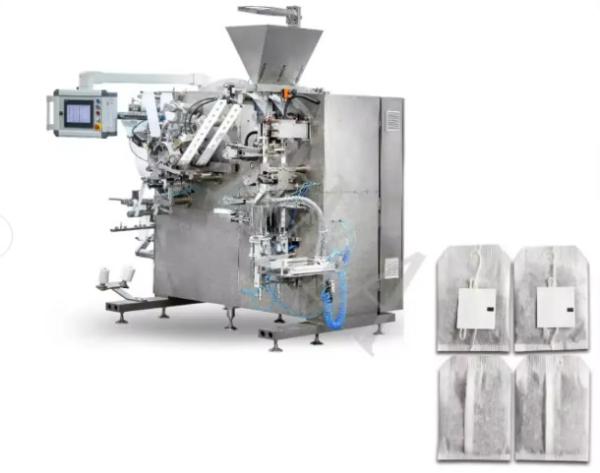

DXD01KM120 single-chamber high-speed tea bag packing machine

The teabag packing machine Model DXD01KM120 is single-chamber high-speed machine, and it is mainly used to pack broken tea and other granular materials (20-40 meshes bulk non-viscidity granular or sheet materials). Its main functions include automatic feeding, double-row slitting of tea bag, heatsealing of tag, cotton thread and filter paper, tea bag counting, grouping and output, etc.

Through PLC, HMI and multi axis servo control system, the products packing are completed coordinately and orderly. The functional systems can be customized and developed, such as tea bag summary into envelope bag, envelope bag heat-sealing forming, envelope bag counting, grouping and output.

The latest type of heated sealing packing machine is the full automatic tea packaging machine. This machine has multiple functions and can automatically pack. Its main feature is that it can pack the inner and outer bags in one go, which avoids direct contact between hands and the material, thus improving efficiency. The inner bag of the machine is made of filter cotton paper, which can be automatically packed with thread and label. The outer bag, on the other hand, is made of composite paper.

This machine has its own set of advantages, including photoelectric location that allows the machine to locate the tag and outer bag, and adjust the content length of the inner and outer bag as well as the tag. The dimensions of the inner and outer bags can be adjusted according to the needs of the product. This feature helps in achieving the perfect shape and upgrading the appearance of the product, adding more value to it.

Applications:

The machine is primarily designed for dual bag packaging of small, grain-like materials like tea leaves, medicinal tea, and healthy teas in powdered form.

The equipment is highly suitable for businesses involved in the production and packaging of tea products, as it streamlines the production process, making it more efficient and cost-effective. By using the machine, manufacturers can reduce wastage and enhance the neat packaging of the products.

The machine is easy to operate, clean, and maintain, and it conforms to all industry standards. Its compact design and simple controls make it an ideal choice for small and medium-sized businesses, while its fast and high-precision bagging capacity makes it a more desirable option for large-scale manufacturers.

The machine is built to provide consistent and reliable performance, ensuring that the packaged products are of high quality and meet the expectation of customers. The advanced technology used in this machine improves the overall productivity and minimizes the risk of errors or inconsistencies.

Characteristics

1. Double-row synchronous output, higher production efficiency

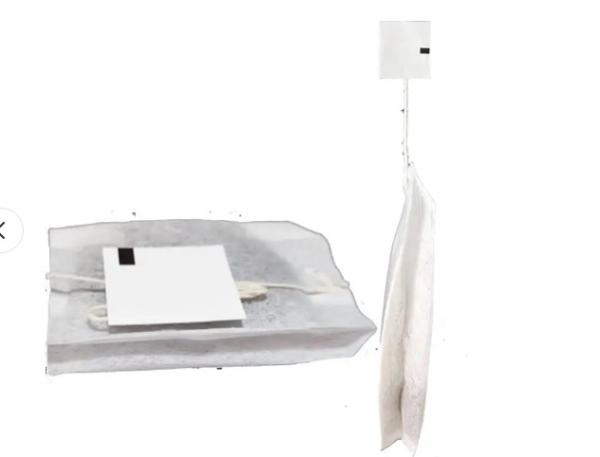

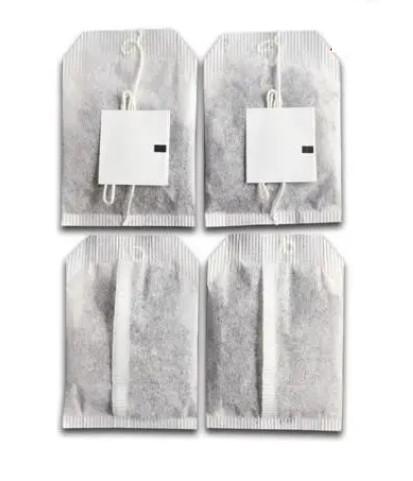

2. New designed bag: Back-seal, sides folding, chamfer cutting

3. Cotton thread is winded, its length is adjustable

4. Automatic heat-sealing for tag, filter paper and cotton thread

5. New drawer type double-position metering feeding

6. Active unwinding of packing materials, double-row slitting, automatic correction

7. To customize different dimensions of tea bag and envelope bag

8. To customize and expand the functions of envelope bag stack and cartoning, etc.

Product configuration

Technical data

Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-22g/㎡ ,width:232mm , 8100bags/kg
Label paper: Paper/plastic (PE) composite film, 150-180g/㎡, paper thickness of 0.15-0.2mm, width:80mmThe paper can be printed according to the user's needs.
Cotton thread: The thread should be original cotton thread with 3 strands of No.16 (20 in English System) thread wound into cone, 24500teabags/Roll

Customization:

With a packing accuracy of ±0.15g and a packing rate of 20-60 bags per minute, this full automatic tea bags packaging machine is perfect for both small and large-scale tea packaging operations. Whether you're packaging flower tea or herb tea, this machine can handle it all.

What's more, the Automatic Tea Bag Packing Machine by CHIC is available in two different power options - 400w or 800w - to suit your specific needs and requirements.

Don't settle for subpar tea bag packaging - upgrade to the Automatic Tea Bag Packing Machine by CHIC today and experience the difference!

Support and Services:

The Tea Bag Packing Machine is designed to efficiently package tea bags into individual sachets for retail sale. The product technical support and services offered include:

• Installation and setup guidance
• Training on how to operate the machine
• Maintenance and repair services
• Technical support for troubleshooting and problem solving
• Access to replacement parts
• Upgrades and customization options

Our team of experts is dedicated to providing timely and effective support to ensure the smooth operation of your Tea Bag Packing Machine.

Factory show

Packing and Shipping:

Product Packaging:

• Material: Cardboard Box
• Dimensions: 45cm x 35cm x 25cm
• Weight: 10kg

Shipping:

• Shipping Method: DHL, FedEx, UPS
• Delivery Time: 5-7 business days
• Shipping Cost: Calculated based on destination

FAQ:

Q: What is the brand name of the tea bag packing machine?
A: The brand name of the tea bag packing machine is CHIC.

Q: Where is the tea bag packing machine made?
A: The tea bag packing machine is made in CHINA.

Q: What is the capacity of the tea bag packing machine?
A: The capacity of the tea bag packing machine depends on the model. Please refer to the product specifications for more information.

Q: Is the tea bag packing machine easy to operate?
A: Yes, the tea bag packing machine is designed to be user-friendly and easy to operate. However, it is recommended to read the instructions carefully before use.

Q: Does the tea bag packing machine come with a warranty?
A: Yes, the tea bag packing machine comes with a warranty. Please refer to the warranty information provided with the product for details.
