Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Specifications
Brand Name :
SANCHANG
Model Number :
MD450-60X9P
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
300pcs/month
Delivery Time :
30 working days
Packaging Details :
Plywood Case
Flow Capacity :
335-500m3/h1
Delivery Head :
113-650m
Inlet/Outlet Dia. :
250mm/250mm
Working Pressure :
<9.75MPa
Liquid Temperature :
0-120℃
Application :
Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water
Material :
Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
Dirven By :
Electric Motor / Diesel Engine
Voltage :
380V/400V/415V/440V/460V/690V/6kV/10kV
Speed :
2980/3560rpm
Seal :
Gland Packing/Mechanical Seal
Frequency :
50/60Hz
Description

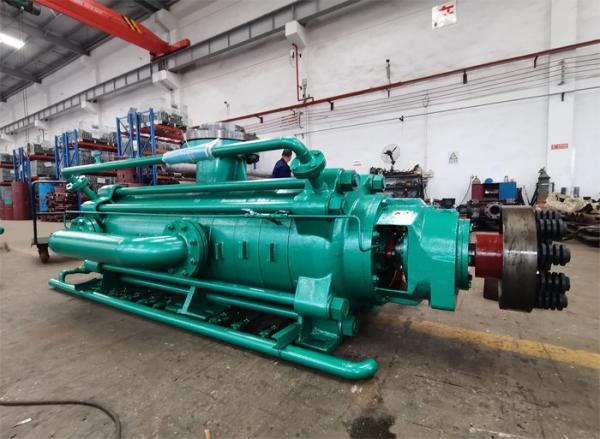

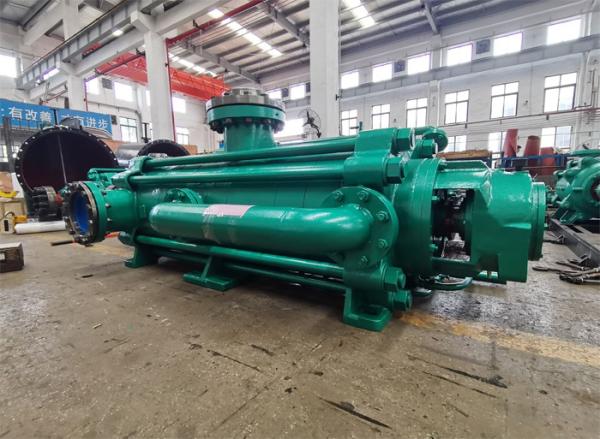

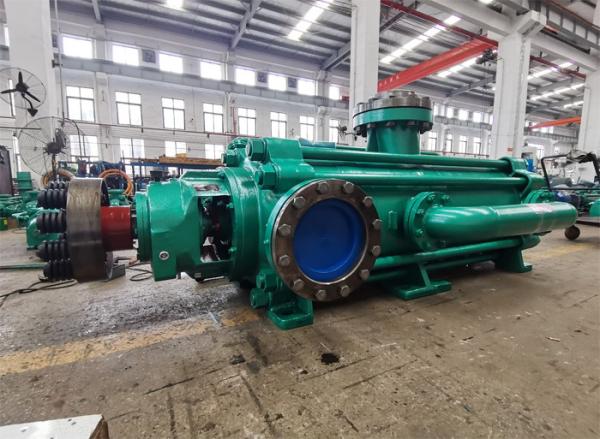

Horizontal Ring Section Self-Balancing Multistage Centrifugal Mining Water Pump MD450-60X9P
Description
ZD series self-balancing multistage ring section centrifugal mining water pump is a innovative product which designed to remove the mechanical balance drum, balance disc, balance socket and related parts, and achieve the balancing function by reverse circulation water pipe.
The external bypass pipe at the outside of the pump is designed for water re-flushing, it will make the water flowing directly into the end of the pump from the suction side, and then return to the discharge section at the middle of the pump, the axial force will be balanced by water flowing from both sides of the discharge section.
It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.

Features

* 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Sanchang Pump.
* Back-to-back impeller stacking to automatically balance the axial hydraulic thrust.
* Optional inducer stage with fine inducer impeller to allow very low NPSHr.
* The suction nozzle and discharge nozzle can be horizontal, vertical, down, any position in times of 90 degree.
* Optional shaft sealing for single mechanical seal, double mechanical seal, cartridge mechanical seal and soft packing meet API 682.
* Standard design for stuffing box cooling jacket allow the pump to transfer high temperature liquid.
* Bearing bracket with cooling jacket or finned shape cooled by fan to ensure long bearing life and stable pump working.
* Bearing lubrication is optional for grease, ring oiled, splashed systems or boosting systems.
* Bearing type can be rolling element bearing and plain bearing. for heavy duty and high temperature.
* Full Range Pump to meet vary demand of you designed capacity and head.

Parameters

Flow Capacity 335-500 m3/h Delivery Head 113-650 m
Inlet/Outlet Dia. 250mm/250 mm Working Pressure ≤ 9.75 MPa
Liquid Temperature 0 - 120 ℃ Driven By Electric Motor / Diesel Engine
Seal Type Mechanical seal / Gland packing Liquid Clean water or similar
Material of Construction Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Main Parts Configuration
The MD/ZD series self-balancing multistage ring section centrifugal mining water pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
Parts Name Clean Water Sewage Hot Water Corrosive Liquid Oil Liquid
Pump Body Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Shaft Cast Iron S.S420 S.S420/42CrMo S.S630 S.S420/40Cr
Shaft Sleeve Carbon Steel S.S420 S.S304 S.S316/S.S630/S.S2205 S.S304/S.S316
Impeller Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Wearing Ring Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Bearing China Make/NSK/SKF/Customized
Seals Mechanical Seals/Gland Packing Seals

Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
Applications

* boosting in General Industries of chemical process
* boiler water feeding
* Food & beverage
* Sewage Treatment Plant
* Marine & offshore
* Sea Water Desalination
* Petrochemical processing
* Clear liquids
* Commercial water supply, High building water supply
* Mining water discharge
* Supper long distance water transferring

Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head
We offer a variety of service activities:
* Remote online supporting and diagonosis. Onsite consulting before & after sales.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
* Training of our worldwide customers in the field of installation, operation and maintenance.
