Electric Single Stage 480m3/h Chemical Suction Pump IHF Series
Electric Single Stage 480m3/h Chemical Suction Pump IHF Series
Specifications
Brand Name :
SANCHANG
Model Number :
IHF200-150-315
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs/month
Delivery Time :
30 working days
Packaging Details :
Plywood Case
Flow Capacity :
250-480m3/h
Delivery Head :
30- 34m
Inlet/Outlet Dia. :
200/150mm
Working Pressure :
≤ 0.8 MPa
Liquid Temperature :
0 - 120 ℃
Application :
Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water
Material :
Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
Driven By :
Electric Motor / Diesel Engine
Voltage :
380V/415V/440V/460V/3000V/6000V
Speed :
1480/1760rpm
Seal :
Gland Packing/Mechanical Seal
Frequency :
50/60Hz
Description

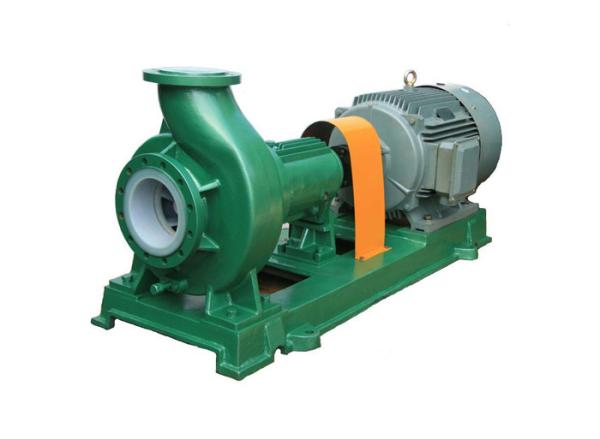

Horizontal End Suction Chemical Centrifugal Pump IHF200-150-315 for Acid or Similar Corrosive Liquid

The IHF series single stage end suction centrifugal pump is designed for acid or other corrosive liquid. It could be used to transfer clean water, fresh water, drink water, hot water and corrosive liquid. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.

IHF series End suction chemical centrifugal pumps are the most cost-effective solution for acid liquid pumping applications. The highly efficient end suction chemical centrifugal pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric / diesel drives, designed to withhold temperatures of up to 120 deg.C

Main Performance Data
Flow: 250 - 480 m3/h
Delivery Head: 30 - 34m
Inlet/Outlet Dia.: 200/150mm
Working Pressure: ≤ 0.8Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 120℃
Model Instruction
E.G.: IS/IR/IY/IH/IHF200-150-315A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
IH: Single stage end suction pump (for corrosive liquid)
IHF: Single stage end suction pump with inner F46 layer (for corrosive acid)
200: Inlet diameter is 100mm
150: Outlet diameter is 80mm
315: Rate impeller diameter is 160mm
A(B,C....): Impeller code
Applications
Industrial water supply and discharge,
Hot water circulation, heating supply system,
Power plant heating re-circulation & re-cycling,
Food, wine, drink, drug industry,
Clean & Hot water transferring,
Corrosive liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry, Paper & pulp industry
Sugar industry, Heading & Air conditioning,
Enviromental protection engineering.
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Drink Water Hot Water Corrosive Liquid Acid Liquid
Pump Body Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Shaft Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 S.S420/S.S630
Shaft Sleeve Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 F46
Impeller Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Wearing Ring Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 F46
Bearing China Make/NSK/SKF
Seals Mechanical Seals
