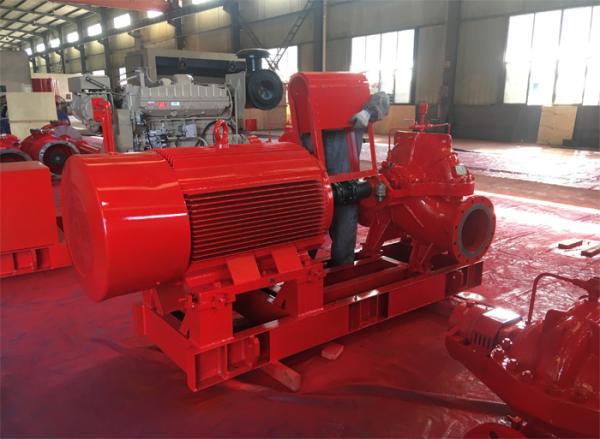

Double Suction Split Case Fire Fighting Water Pump 3000-5000gpm 90-120m
Double Suction Split Case Fire Fighting Water Pump 3000-5000gpm 90-120m
Specifications
Brand Name :
SANCHANG
Model Number :
COS-F250-600
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
300pcs/month
Delivery Time :
45 working days
Packaging Details :
Plywood Case
Flow Capacity :
3000-5000gpm
Delivery Head :
90-220m
Inlet/Outlet Dia. :
DN300/DN250mm
Working Pressre :
<1.8MPa
Liquid Temperature :
0-80 ℃
Application :
Clean water, Sewage, Hot water, Corrosive liquid, Mining water
Material :
Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
Driven By :
Electric Motor / Diesel Engine
Voltage :
380V/415V/440V/460V/660V
Speed :
1480/1760rpm
Seal :
Gland packing/Mechanical seal
Frequency :
50 /60 Hz
Description

Double Suction Split Case Fire Fighting Water Pump COS-F250-600 (3000-5000gpm 90-120m)

The XSF series Horizontal Split Case Fire Fighting Water Pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance. Impellers are constructed with double inlets that practically eliminated end thrust while boosting operating efficiency.

The simple, split case design of these pumps allows for in-line service without disturbing piping while ensuring long, efficient unit life, reduced maintenace costs and minimal power consumption. Whether your fire pump application requires an electric motor, a diesel engine or vertical or horizontal orientation, these industry-approved pumps can be configured to meet your specific needs. These pumps are designed to operate with pressures from 5 Bar to 20 bar, even in excess of 22 bar and flows from 500 gpm to 5000 gpm.

Features
* Axially split casing – rotating element can be removed without disturbing pipework
* Exceptional hydraulic efficiencies
* Double entry reduce end thrust force, increase efficiency and bearing life
* Stainless steel impellers and shaft as standard
* Internal high efficiency coating as standard
* Wide operating range and extended bearing life
* Reduced efficiency degradation
* Comply to FM and/or UL standards (NFPA 20, UL448 and FM1311)


Parameters of COS-F series Split Case Fire Fighting Water Pump

Flow Capacity 3000-5000 gpm Delivery Head 90-120 m
Inlet/Outlet Dia. DN300/DN250 mm Working Pressure ≤ 1.2 MPa
Liquid Temperature 0 - 80 ℃ Driven By Electric Motor / Diesel Engine
Seal Type Mechanical seal / Gland packing Liquid Clean water or similar
Material of Construction Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

Double Suction Split Case Fire Fighting Water Pump 3000-5000gpm 90-120m

Double Suction Split Case Fire Fighting Water Pump 3000-5000gpm 90-120m

Applications
Industrial fire fighting system,
Residential fire fighting system,
Commercial fire fighting system,
Ware house fire fighting system,
Boat & Sea platform fire fighting.

Main Parts Configuration

To meet the NFPA20 standards, the pump was constructed with the following materials:

Parts Name Material of Construction (Comply with NFPA20)
Pump Case Ductile Iron
Shaft 40Cr / 35CrMo / 42CrMo/S.S420
Shaft Sleeve S.S304
Impeller S.S304/Bronze
Wearing Ring S.S304/Bronze
Bearing China Make/NSK/SKF
Seals PTFE Packing Seals/Mechanical Seals
We offer a variety of service activities
• Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
• Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
• Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
• Witness Inspection & Performance test in factory.
• Training of our worldwide customers in the field of installation, operation and maintenance.
