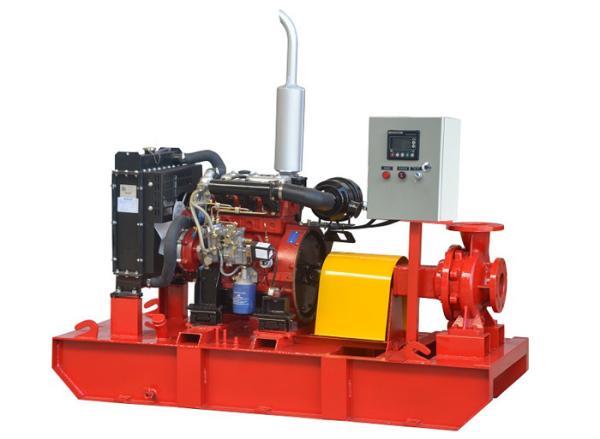

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted
ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted
Specifications
Brand Name :
SANCHANG
Model Number :
IS-F100-65-315
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
300pcs/month
Delivery Time :
45 working days
Packaging Details :
Plywood Case
Flow Capacity :
350gpm
Delivery Head :
130m
Inlet/Outlet Dia. :
DN100/DN65mm
Working Pressre :
<1.95MPa
Liquid Temperature :
0-80 ℃
Application :
Clean water, Sewage, Hot water, Corrosive liquid, Mining water
Material :
Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
Driven By :
Electric Motor / Diesel Engine
Voltage :
380V/415V/440V/460V/660V
Speed :
2980/3560rpm
Seal :
Gland packing/Mechanical seal
Frequency :
50 /60 Hz
Description

End Suction Fire Fighting Water Pump IS-F100-65-315 (350gpm 130m)

Description

A fire fighting water pump is a centrifugal pump which is used for pumping fire-fighting water. Fire-fighting pumps can be designed for transportable use (e. g. on fire-fighting vehicles or as portable fire pumps) or for stationary use (e. g. hydrants, sprinkler systems).

The ISF series Horizontal End Suction Fire Fighting Water Pumps are engineered for reliable operation upon stationary use. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance. Impellers are constructed with double inlets that practically eliminated end thrust while boosting operating efficiency.

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 100 deg.C.

Features

* UL / FM Complied
* Electric and Diesel Speeds
* Back Pullout Design for Easy Pump Service without Disconnecting Pipe
* Frame-Mounted Design
* Small Footprint Ideal for Retrofit
* Designed for Installations such as Schools, Office Buildings, and Hospitals


Parameters of COS-F series Split Case Fire Fighting Water Pump

Flow Capacity 350 gpm Delivery Head 130 m
Inlet/Outlet Dia. DN100/DN65 mm Working Pressure ≤ 1.95 MPa
Liquid Temperature 0 - 80 ℃ Driven By Electric Motor / Diesel Engine
Seal Type Mechanical seal / Gland packing Liquid Clean water or similar
Material of Construction Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

Main Parts Configuration

To meet the NFPA20 standards, the pump was constructed with the following materials:

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

Parts Name Material of Construction (Comply with NFPA20)
Pump Casing Ductile Iron/S.S304/S.S316
Shaft 40Cr / 35CrMo / 42CrMo/S.S420
Shaft Sleeve S.S304/S.S316
Impeller S.S304/S.S316/Bronze
Wear Ring S.S304/S.S316/Bronze
Bearing China Make/NSK/SKF
Seals PTFE Packing Seals/Mechanical Seals
ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted
