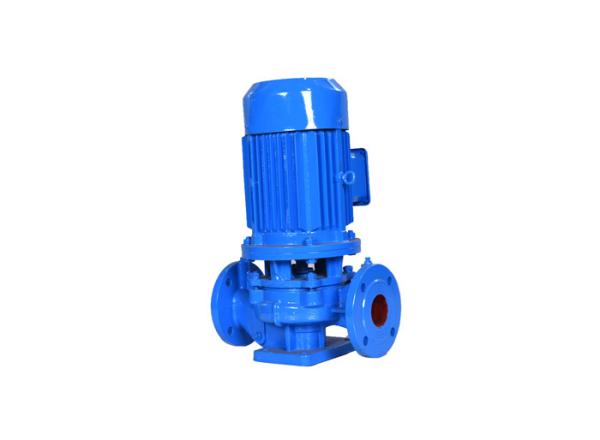

13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
13-520m3/H Single Stage Vertical Inline Centrifugal Pump ISG Series
Specifications
Brand Name :
SANCHANG
Model Number :
ISG
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/month
Delivery Time :
30 working days
Packaging Details :
Plywood Case
Flow Capacity :
13-520m3/h
Delivery Head :
2.5-155m
Outlet Dia. :
50-200mm
Working Pressure :
<2.5MPa
Liquid Temperature :
0-120 ℃
Application :
Clean Water, Hot Water, Sewage Water, Corrosive Liquid, Mining Water
Material :
Cast Iron, Cast Steel, S.S304, S.S316
Dirven By :
Electric Motor
Voltage :
380V/415V/440V/460V/660V
Speed :
1480/2980/1760/3560rpm
Seal :
Mechanical Seal
Frequency :
50/60Hz
Description

Vertical Inline Centrifugal Pump ISG Series for Water Circulation/Pipe Boosting

ISG, IRG, IHG, IYG single stage single suction vertical inline centrifugal pumps are designed according to different working conditions. The excellent hydraulic model makes the pump easy intallation & maintenance, the compact designed pump save more space in the pump house.

Main Performance Data
Flow: 13 - 520 m3/h
Delivery Head: 2.5-155m
Outlet Dia.: DN50-DN200mm
Working Pressure (Max): 2.5Mpa
Liquid Temperature: 0 - 120℃ (by different material of wet parts)

Model Instruction
E.G: ISG/IRG/IHG/IYG 80-160A(B,C...)
ISG: Pump used for ambient clean water;
IRG: Pump used for hot water;
IHG: Pump used for chemical liquid;
IYG: Pump used for oil liquid;
80: Inlet diameter
160: Rate Impeller diameter
A(B,C...): Different impeller size.

Applications
Industrial water supply & discharge,
Oil, gas & petrol liquid processing,
Hot water & raw water transferring,
Chemical & sea water transferring,
Factory & residential fire fighting,
Civil water sypply and boosting.

Wet Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name ISG IRG IHG IYG
Pump Body Cast Iron Cast Steel S.S304 Cast Iron
Pump Case Cast Iron Cast Steel S.S304 Cast Iron
Shaft Carbon Steel S.S420 S.S304 S.S420
Shaft Sleeve Carbon Steel S.S420 S.S304 S.S420
Impeller Cast Iron Cast Steel S.S304 Cast Iron
Wearing Ring Cast Iron Cast Steel S.S304 Cast Iron
Bearing China Make /NSK/SKF
Seals Mechanical Seals
