Specifications
Brand Name :
SANCHANG
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs/month
Delivery Time :
30 working days
Packaging Details :
Plywood Case
Flow Capacity :
9 - 2390m3/h
Delivery Head :
12 - 130m
Outlet Dia. :
32 - 350mm
Working Pressure :
≤ 2.5 MPa
Liquid Temperature :
0 - 150 ℃
Application :
Clean Water, Sewage, Hot Water, Corrosive Liquid, Chemical Liquid
Material :
Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
Driven By :
Electric Motor / Diesel Engine
Voltage :
380V/415V/440V/460V/3000V/6000V
Speed :
1480/2980rpm
Seal :
Gland Packing/Mechanical Seal
Frequency :
50/60Hz
Description

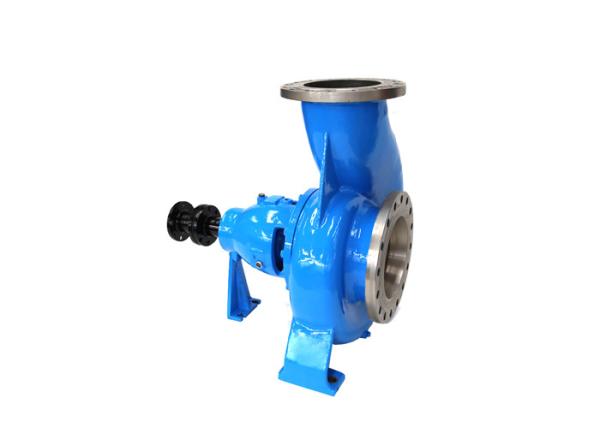

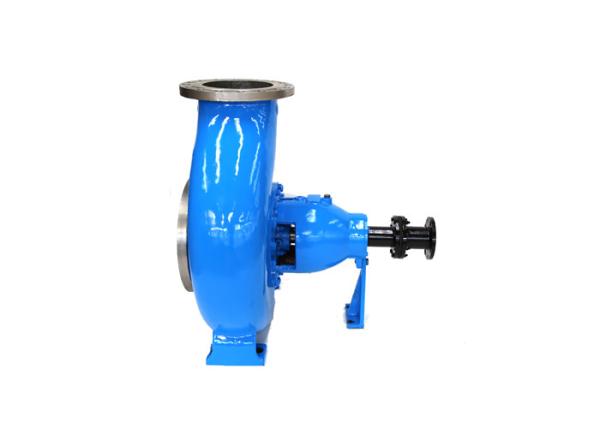

Horizontal End Suction Processing Centrifugal Pump ZA Series for Fresh Water, Drink Water and Corrosive Liquid
The ZA/ZE series petrochemical process centrifugal pump is designed comply with API610 standard, it could be used to transfer clean water, hot liquid, chemical liquid, etc. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge. This series pump is widely used in refineries, chemical industry, sea water desalination plants and also heating & air conditioning, etc.
Main Performance Data
Flow: 9 - 2390 m3/h
Delivery Head: 12 - 130m
Outlet Dia.: 32 - 350mm
Working Pressure: ≤ 2.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 150℃
Model Instruction
E.G.: ZA80-160A
ZA: Single stage processing pump (Over-Hang)
ZE: Single stage processing pump (Central-Support)
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....): Impeller code
Applications
Refineries, Petrochemical industry, Coal processing,
Chemical industry, Fibre processing industry, Paper & pulp industry
Sugar industry, Civil waterworks, Sea water desalination plants,
Heading & Air conditioning, Enviromental protection engineering.
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Drink Water Hot Water Corrosive Liquid
Pump Body Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316
Shaft Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316
Shaft Sleeve Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316
Impeller Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316
Wearing Ring Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316
Bearing China Make/NSK/SKF
Seals Mechanical Seals
