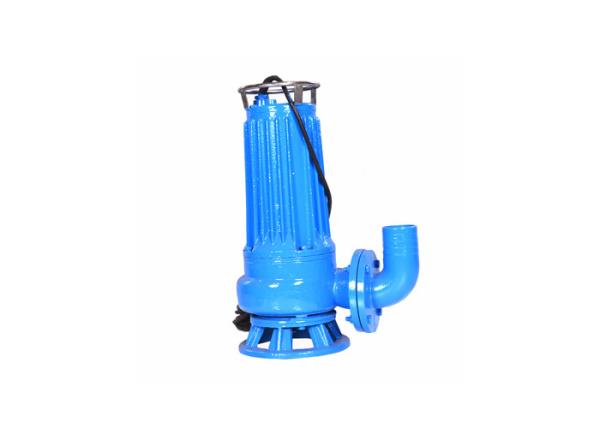

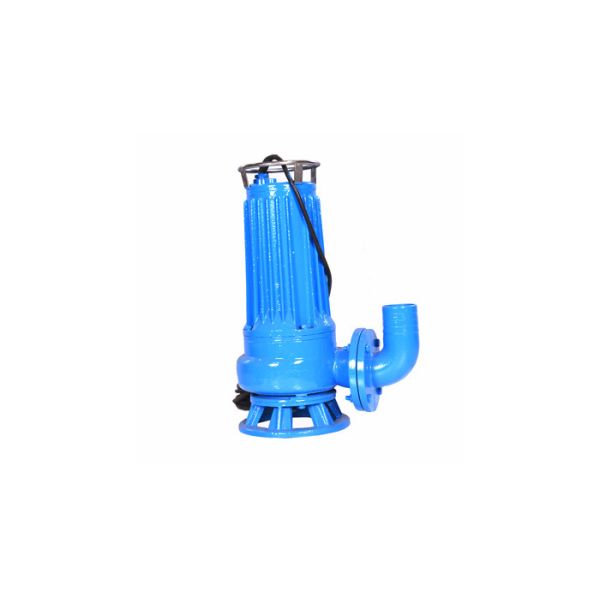

80QW Series Submersible Water Pump for Raw Water Intake and Drainage

QW/WQ series submersible water pump, it is widely used in the raw water in-taking, irrigation, drainage applications, and also widely used in the civil water supply, industrial water delivery, sewage discharge, construction site, mining, etc. It is easy using, simple installation and easy movable.

Submersible pumps are used for a wide range of applications. If you have a small pump around your property or a well pump it is probably a submersible pump. Submersible pumps are also common in sewage applications, raw water pumping applications, and to remove storm water from structures like parking garages.

Main Performance Data

Flow: 10 - 4,000 m3/h

Delivery Head: 5-40m

Outlet Dia.: 50-600mm

Working Pressure: ≤ 1.5Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃-80℃

Model Instruction
E.G:100QW100-15-7.5
100: Outlet diameter (mm)
QW: Submersible pump
100: Flow capacity (m3/h)
15: Delivery head (m)
7.5: Motor power (kW)

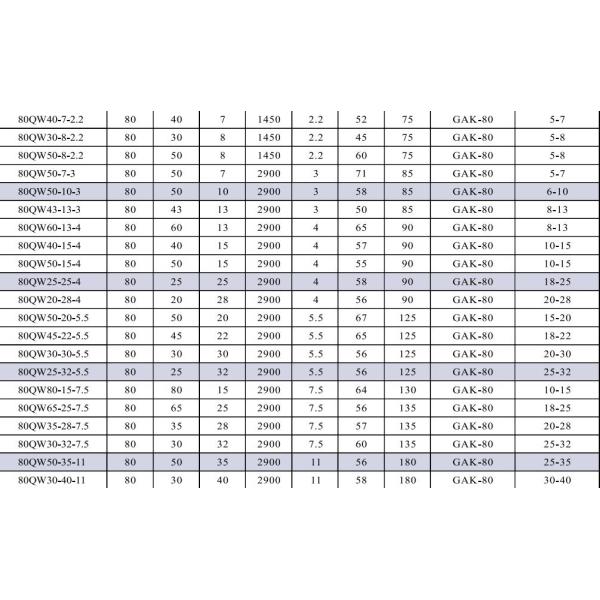

Performance Range of 80QW Submersible Water Pump

Applications

We offer a variety of service activities
* Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Upgrades - with our engineering capabilities we can execute pump modifications to customer specifications of pump designs of most manufactures.
* Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
