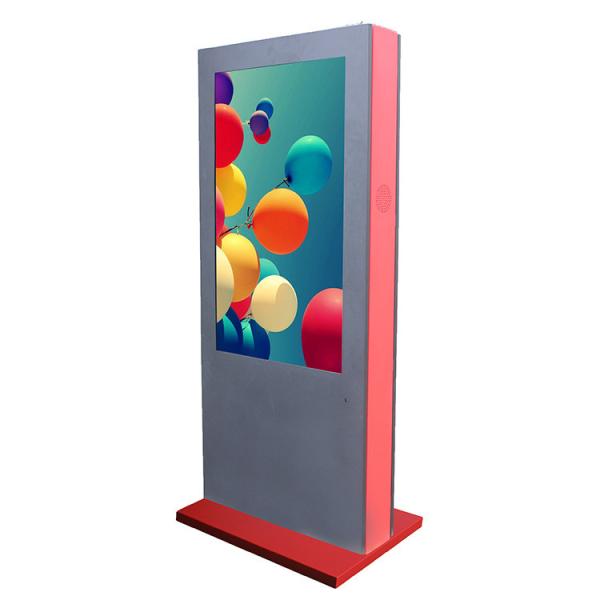

Wifi 43" 55" Outdoor LCD Digital Signage Touch Screen Weatherproof Sunreadable
Main features
1. IP65 design for outdoor application.
2. High brightness up to 4000cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Lightning protection and heating below zero
5. Fron tempered glass and anti-glare glass
6. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.
7. Anti-dust, anti-vandal, anti-theft.
8. Customized design for you without additional cost.
9. Screen sizes available 32/43/49/50/55/65 Inch
10. Wall mount, roof hanging and free standing(fixed on ground) all available.
11. Security electric circuit design
12. Build in power timer
13. Silver, White, Black or optional
Dimensions
LCD Panel Parameter | |
Panel Size | 32-65 |
Panel Brand | LG/Samsung/AUO/BOE etc |
Installation | outdoor |
Panel Type | HIGH nits LCD screen & patent LED backlight |
Max Resolution (pixel) | 1920(RGB)*1080(FHD) |
Aspect Ratio | 16:09 |
Display Color | 16.7M(8bit) |
light sensor | auto adjust brightness according to the surrounding enviroment |
Brightness | 1500-4000cd/m2 |
Contrast Ratio | 4000:1 |
View Angle | 89°/89°89°/89°(Typical) |
Response Time | 6ms(Typical) |
Technical Specification | |
Frame material | 1.5mm agalvanized sheet |
Colored System | PAL/NTSC/Auto-detecting |
Menu Language | Multiple language,English(Default) |
Noise Reduction | Yes |
Voltage Frequency | 100V-240V AC |
Horizon Frequency | 50/60Hz |
Working Temperature | 0°C~50°C |
Working Humidity | 10% - 90% no condensation |
Storage Temperature | -20°C - 80°C |
Storage Humidity | 85% no condensation |
Operating System | |
Android | |
Android CPU(Standard) | Dual Core Allwinner A201.5GHz |
Optional CPU | Rockship RK3288 quad-core 1.6GHz |
Memory | DDR3 2GB |
Built-in Storage | 8GB FLASH for A20,8G for RK3288, Support TF card expansion |
RJ45/WIFI/4G/USB/CF/SD | Include |
Touch Funcion | Optional |
Touch sensor | capacitive/infrared |
Touch surface | 9H Anti-glare Tempered Glass |
Windows | |
CPU | Core 3217U, 3317U, 3517U; i3, H81 i5. H81 i7 |
Mainboard | H81/B75 etc.. |
Memory | RAM 4GB |
Build-in storage | 500 HDD/120GB SSD |
RJ45/WIFI/4G/USB/TF/SD | Include |
V59 | |
CPU | No |
Memory | SD/USB |
WIFI/RJ45/3G/4G | No |
HDMI output | No HDMI output |
Infrared or capacitive touch | No |
Support software installing Application | Application is not supported |
Temperature control system | |
Air Cooling | smart fan |
Cold and warm air conditioner | fixed frequency and variable frequency air conditioner |
Optional function | |
Remote environment monitoring system |
Why outdoor digital sigange different ?
Outdoor kiosks are often located in public spaces. When the kiosks have public access, they are left open to factors and conditions that may result in internal or external damage from physical abuse or extreme weather. So outdoor digital signage products is quite different from indoor products in terms of quality, build, material, technical data, and of course the price too.
Sunlight Readable Is A Must !
Brightness Auto-adjustable with light sensor control
Waterproof And Dustproof Is a Must !
Cooling System Is A Must
AC cooling: AC (air conditioning) cooling is a must for customers from countries which have extreme weather in Summer or Winter. Or you have special requirements on dustproof, AC cooling is the best choice.
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l
4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
