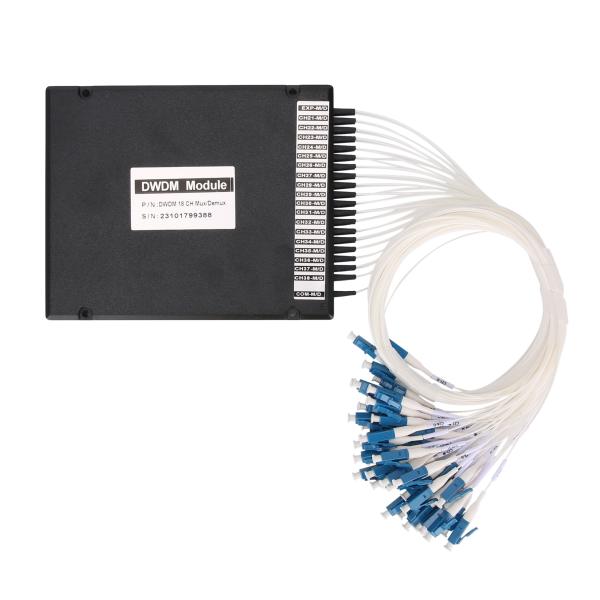

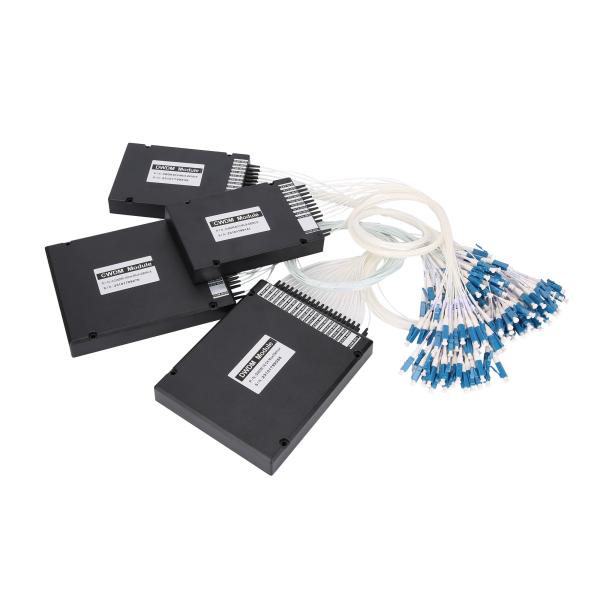

ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
Specifications
Brand Name :
HJY
Model Number :
HJY-DWDM-18CH-ABS-4
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pc
Price :
Please find sales@huajiayu.com
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000000pcs/month
Delivery Time :
3~7 working days
Packaging Details :
Neutrial Standard Packing
Channel Spacing :
100GHz
Applications :
Long haul,Metro,Access application
Size :
100x80x10
Type :
dwdm mux
Connector :
lc
Description

DWDM 18CH MUX DEMUX ABS Module with 30dB Adjacent Isolation Epoxy Free Optical Path FC APC Connectors

Our DWDM 18CH MUX DEMUX ABS Module is designed to revolutionize optical networking. Boasting an impressive 30dB adjacent isolation, it effectively minimizes signal interference between channels, ensuring crystal - clear data transmission. The epoxy - free optical path not only enhances the module's reliability but also reduces potential long - term degradation issues. Equipped with FC APC connectors, it offers easy and secure fiber optic connections. Ideal for high - performance DWDM systems, this module provides seamless integration and stable operation, making it a top choice for network infrastructure upgrades.
DWDM multi-channel multiplexer /demultiplexer (MUX /DEMUX)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.
Fixed MUX/DEMUX modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Features
· Low Insertion Loss
· High Isolation
· Low PDL
· Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength
· Wide Operating Temperature: -20 to 70°C
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Applications
· DWDM systems, fiber optical amplifier
· CATV links, wavelgnth routing
· PON networks
Product specification
Channels
4
8
16
Insertion Loss
<1.5dB
<2.4dB
<4.0dB
Wavelength Range
C- band ITU channels
Technology
TFF (Thin Film Filter)
Channel Spacing
100GHZ(0.8nm)
Passband Ripple
≤0.5dB
Channel Passband
±0.11nm
Channel Isolation
Adjacent ≥30dB
Non-adjacent ≥45dB
Polarization Dependent Loss
≤0.2dB
Polarization Mode Dispersion
≤0.2ps
Directivity
≥50dB
Return Loss
≥45dB
Optical Power Handling
≤500mW
Temperature
Operating -40 to 85°C
Storage -40 to 85°C
Fiber Type
SMF-28e+
Connector
LC/SC/FC or other
Net Weight
0.25kg
Package dimensions
100*80*10mm
120*80*18mm
Or other
Notes:
1) HJY Support Customized Design, please contact us by email sales@huajiayu.com
2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

Package Information
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free

Note : Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
ABS 18CH DWDM OADM MUX DEMUX 30dB Adjacent Isolation Epoxy Free
Dense Wavelength Division Multiplexing (DWDM)
ITU Grid: C-Band, 100 GHz Spacing
Channel
Frequency
Wavelength
Channel
Frequency
Wavelength
(#)
(GHz)
(nm)
(#)
(GHz)
(nm)
1
190100
1577.03
37
193700
1547.72
2
190200
1576.20
38
193800
1546.92
3
190300
1575.37
39
193900
1546.12
4
190400
1574.54
40
194000
1545.32
5
190500
1573.71
41
194100
1544.53
6
190600
1572.89
42
194200
1543.73
7
190700
1572.06
43
194300
1542.94
8
190800
1571.24
44
194400
1542.14
9
190900
1570.42
45
194500
1541.35
10
191000
1569.59
46
194600
1540.56
11
191100
1568.77
47
194700
1539.77
12
191200
1567.95
48
194800
1538.98
13
191300
1567.13
49
194900
1538.19
14
191400
1566.31
50
195000
1537.40
15
191500
1565.50
51
195100
1536.61
16
191600
1564.68
52
195200
1535.82
17
191700
1563.86
53
195300
1535.04
18
191800
1563.05
54
195400
1534.25
19
191900
1562.23
55
195500
1533.47
20
192000
1561.41
56
195600
1532.68
21
192100
1560.61
57
195700
1531.90
22
192200
1559.79
58
195800
1531.12
23
192300
1558.98
59
195900
1530.33
24
192400
1558.17
60
196000
1529.55
25
192500
1557.36
61
196100
1528.77
26
192600
1556.55
62
196200
1527.99
27
192700
1555.75
63
196300
1527.22
28
192800
1554.94
64
196400
1526.44
29
192900
1554.13
65
196500
1525.66
30
193000
1553.33
66
196600
1524.89
31
193100
1552.52
67
196700
1524.11
32
193200
1551.72
68
196800
1523.34
33
193300
1550.92
69
196900
1522.56
34
193400
1550.12
70
197000
1521.79
35
193500
1549.32
71
197100
1521.02
36
193600
1549.51
72
197200
1520.25
Note:
For 200GHz spacing use either odd or even numbered channels.

Ordering Information:
DWDM
No. of CHs
1st CH
Fiber Type
Fiber Length
In/Out Connector
100=100G
200=200G
04=4 Channel
08=8 Channel
16=16 Channel
18=18 Channel
N=N Channel
……
11=1568.77nm
20=1561.41nm
49=1538.19nm
……
60=1529.55nm
SS=special
1-G652D
2-G657A
3-Other
1=1m
2=1.5m
S=Specify
0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/UPC
……
