630A Electrical Medium Voltage Distribution Panel For Power Plants
630A Electrical Medium Voltage Distribution Panel For Power Plants
Specifications
Brand Name :
KNKONG
Model Number :
KYN61A-40.5KV
Certification :
CB,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
50 units/Month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Rating Voltage :
33-40.5KV
Rating Current :
630-2000A
Rating Frequency :
50/60Hz
Standerds :
IEC GB ISO
OEM/ODM :
Available
Manufactory :
KNKONG-ELECTRIC
Description
630-2000A KYN61 IEC ISO Medium Voltage Electrical Panel
KYN61 metal-clad medium voltage panel
33-40.5KV, 3-phase, AC 630-2000A 50/60Hz
Meets IEC ISO GB standard

Product Introduction

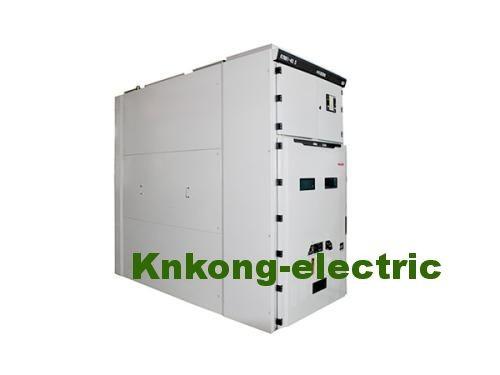

China-made KYN61 switchgear 3P AC 50/60Hz, rated voltage up to 40.5kV, is often used in power plants, substations, industrial and mining, railway transportation, and other industries for power distribution.

External environment:

1) Temperature: -25℃~+40℃

2) Humidity: Monthly average 95%; Daily average 90%.

3) Altitude ≤2500m

4) Ambient air not apparently polluted by corrosive and flammable gas, vapor, etc.

5) No frequent violent shake.

Technical data

Items Unit Data
Rating Voltage KV 40.5
Rating Frequency Hz 50
Rating Current A 1250,1600,2000
Rating Short-circuit Breaking Current KA 25,31.5
Rating Making Current (Peak) KA 63,80
4s Thermal Stability Current KA 25,31.5
Rating Dynamic Current (Peak) KA 63,80
Rating Insulation Level 1min Power Frequency Withstand Voltage (r.m.s) KV 95
Lightning Impulse Withstand Voltage (Peak) KV 185
1min Power Frequency Voltage Across the open gap (r.m.s) KV 118
Lightning Impulse Withstand Voltage Across the open gap (Peak) KV 215
Enclosure Protection Class

Enclosure IP4X,

Between Compartments IP2X
Enclosure Dimension (Width*Depth*Height) mm 1400*2800*2600
1600*2800*2600
Type of Circuit Breaker VCB: ZN85-40.5
SF6 Circuit Breaker

KNKONG produce VCB VS1-40.5 Technical data

Items Unit Date
Rated voltage

KV

 40.5
Rated short-time power frequency withstand voltage (1min) 95
Rated lightning impulse withstand voltage (peak) 185
Rated freq Hz 50/60
Rated current A 1250 1600 2000 2500 4000
Rated short-circuit drop-out current KA 25 31.5
Rated short-time withstand current 25 31.5
Rated short-time continual time s 4
Rated peak withstand current KA 63 80
Rated short-circuit closing current 63 80
Rated single/ back-to-back capacitor bank drop-out current A 630/400
Opening time (rated volt.) ms 35~60
Closing time (rated volt.) 50~100
Mechanical life times 20000
Rated break times for rated short drop-out current s 20
Rated operation voltage V AC110/220 DC110/220
Rated current of power storing motor W 230
Average opening speed m/s 1.6~2.0
Average closing speed 0.5~0.8
Rated operation procedure

opening-0.3s-closing

opening-180s-closing opening
