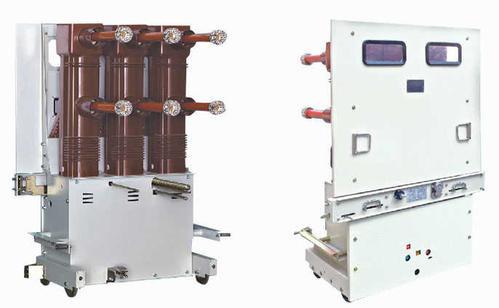

40.5KV High Voltage Vacuum Circuit Breaker
40.5KV High Voltage Vacuum Circuit Breaker
Specifications
Brand Name :
KNKONG
Model Number :
VS1-40.5
Certification :
CCC,ISO9001,CE, CB,IEC60898
Place of Origin :
China
MOQ :
1
Price :
USD 1000-2000 Each
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 unit per month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Voltage :
40.5KV
Current :
630A 1250A 2500A
frequency :
50Hz
Standards :
CCC,ISO9001,CE, CB,IEC60898
OEM/ODM :
Inquiry by email
Manufactory :
KNKONG
Description
VS1-40.5 kv /T type Indoor H.V. VCB vacuum circuit breaker switchgear
Home Vacuum Circuit Breaker VS1-40.5 Indoor Vacuum Circuit Breaker

VS1-40.5 Indoor Vacuum Circuit Breaker

Indoor VCB,Sleeve or Embedded pole
12-40.5KV,three-phase 50HZ
400/630A, AC/DC 110 220
OEM & ODM,Complete equipment
CCC,ISO9001,CE, CB,IEC60898
Inquire

Product Introduction

Normal service condition

Altitude

≤1000m

Ambient temperature

Max

+40℃

Min

-15℃

Ambient humidity:

Maximum average humidity

24 hour ≤95%

1 month ≤90%

Maximum water vapor pressure

24 hours ≤2.2kpa

1 month ≤1.8kpa

The ambient air has no obvious pollution of dust smoke, corrosive or combustible gases, steams or smog

VS1-40.5/E Technical Parameters

No.

Item

Unit

Parameter

1

Rated voltage

KV

40.5

2

Rated frequency

Hz

50

3

Rated power frequency withstand voltage/1 min

KV

95

4

Rated lighting impulse withstand voltage

KV

185

5

Rated current

A

630 1250 1600 2000 2500

6

Rated short-circuit breaking current

KA

20 25 31.5

7

Rated short-time withstand current

KA

20 25 31.5

8

Rated short-circuit marking current

KA

5063 80

9

Rated peak value of withstand current

KA

5063 80

10

Rated duration of short-circuit

s

4

11

Rated operating sequence

O-0.3s-CO-180s-CO

General Description:

VS1-40.5/T type indoor high voltage vacuum circuit breaker is used for switchgear KYN61-40.5(Z). It’s the newest type of power supply and distribution equipment. This product is in accordance with GB1984-2003 standard.

Technical Characteristics:

The design of this kind of VS1-40.5/T takes into account the Chinese market and special areas requirements, making the vacuum interrupter and conductive circuits into an embedded pole by the advantage of the solid insulation and advanced technology of APG.
This not only simplifies the pole assembly process and prevent the vacuum interrupter circuit conductive connecting bolt to run the VS1 ratio as a result of loose, but also improve reliability and avoid the effect of external mechanical force and ambient conditions (such as dust, humidity, nasty, high sea level, animal), and avoid the potential risk of vacuum interrupter operating in adverse environments caused by insulation and then lead to a lower level of the vacuum circuit breaker in the sub-gate under vacuum interrupter surface elastomer. Therefore, within the service life of the circuit breaker, the pole is completely maintenance-free. The circuit breaker’s solid insulation replaces SF6 to meet the need for external insulation. It’ s more environmental protection and represents the advanced level of the vacuum circuit breaker in the modern world.
