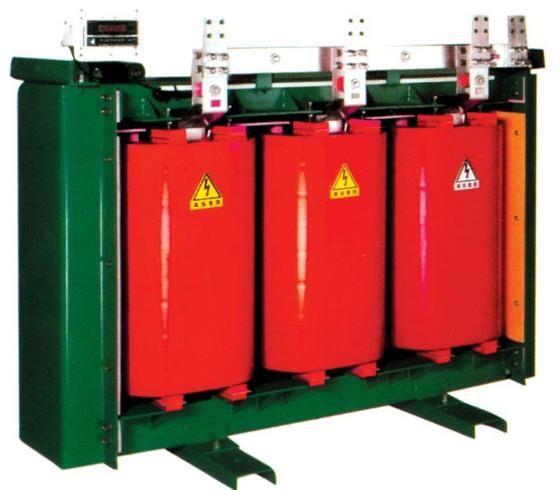

SCBH 1000 KVA Dry Type Transformer
SCBH 1000 KVA Dry Type Transformer
Specifications
Brand Name :
KNKONG
Model Number :
SCBH
Certification :
ISO IEC GB
Place of Origin :
China
MOQ :
1
Price :
USD 1000-2000 Each
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Unit per month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Radio Voltage :
10/0.4KV
Working Frequency :
50/60Hz
Capacity :
30-1600KVA
Type :
Dry
Manufactory :
KNKONG
OEM/ODM :
Inquiry by email
Description
SCBH 10/0.4kv dry-type power transformer 30-1600KVA

SCBH 10/0.4kv dry-type power transformer

Capacity:100~2500KVA
High voltage:6-11kv
Low voltage:0~400v
Inquire

Product Introduction

SCBH amorphous alloy dry-type transformer is a new type of low-loss energy-saving distribution transformer. This product combines the technical advantages of amorphous alloy transformers and traditional epoxy resin cast dry-type transformers, and adopts a new structural form for design.
The biggest advantage of this product is that the no-load loss value is particularly low, which is about 70% lower than the SCB10 dry-type transformer no-load loss, and the no-load current is about 80% lower. It is a distribution transformer with ideal energy-saving effect at present. The product also has the advantages of compact structure, beautiful appearance, low noise, low temperature rise, strong overload capacity, stable electrical performance, and convenient maintenance. In the general environment of advocating energy saving and emission reduction, the market prospects of a variety of energy-saving equipment including amorphous alloy transformers are unanimously promising.

Feature
1. Good moisture-proof performance, adapt to high humidity and other harsh environments;
2. It has the characteristics of environmental protection, flame retardant, explosion-proof, and maintenance-free;
3. The low voltage of this product 200KVA and above is a copper foil wound coil, and the high voltage coil is wound with 4.180℃ high-strength enameled wire. It adopts epoxy resin casting structure and has excellent moisture resistance and crack resistance. The iron core is rolled from amorphous alloy strips and adopts a rectangular cross-section, three-frame and three-column structure.
